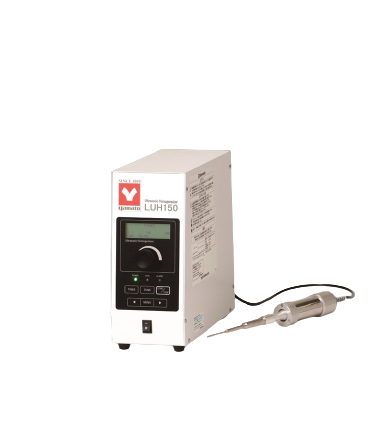

Yamato LUH150 Ultrasonic Homogenizer (50W)

Maximum output: 50W

Oscillation frequency: 20KHz±0.5KHz

Operating ambient temperature range: 5~45℃

Auto-tuning mode: ●

Constant-power mode: ●

Constant-amplitude mode: ●

Timer-controlled operation: ●/1sec~120min.

Operation with hand switch: ●

Attached horn or chip: 3 mm-dia. step type microchips made from titanium alloy

Converter overall dimensions: Φ40×L171mm (not including chip)

External dimensions(W×D×H mm): 122×270×283mm

Power Source: AC100 to 240V 1A Single-phase

Weight: 4.1kg
