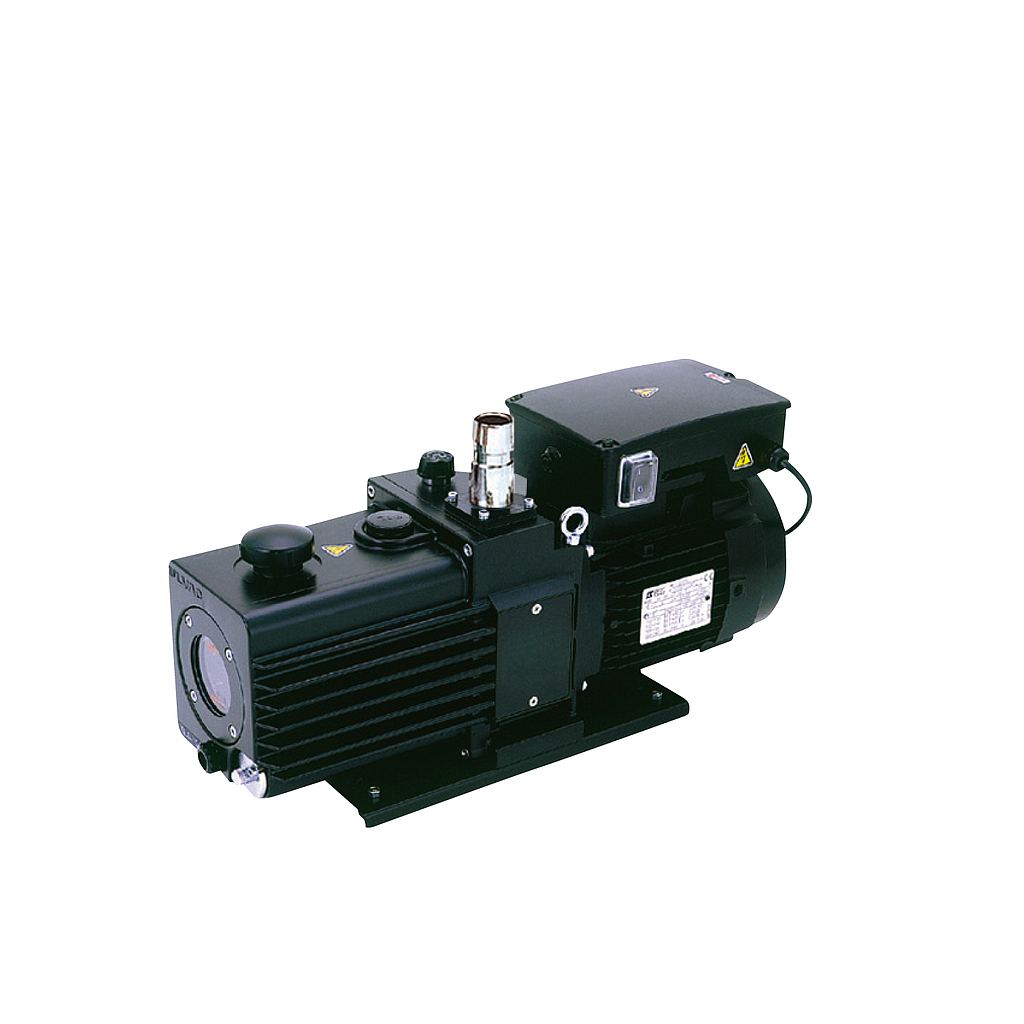

Yamato PD204 Vacuum Pump (1100mL, 200l/phút)

Oil amount (mL): 1100mL

Operating atmospheric temp. range (deg.C): 7 to 40℃

Oil type: SMR-100

Effective exhaust speed (50 Hz): 200l/min

Effective exhaust speed (60 Hz): 240l/min

Attainable vacuum (Pa): 0.67 Pa

Motor: Single phase,100/200V,550W,4P, Multiple-range motor

Suction pipe diameter (mm): O.D.27×I.D.20 mm

External dimensions(W×D×H mm): 170×516×263mm

Power Source: AC100-120V/AC200-240V Single phase

Weight: 31kg
