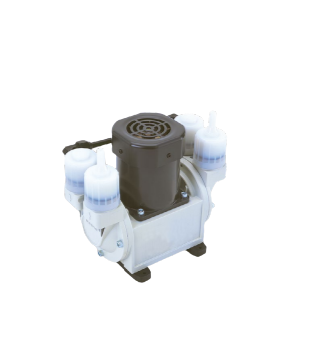

Yamato PG16 Diaphragm Vacuum Pump (6.7×10^3 Pa, 15L/min)

Effective pumping speed (50/60 Hz): 12/15L/min

Ultimate pressure: 6.7×10^3 Pa

Motor (50/60 Hz):  AC100V, 39/43W, 4P Capacitor run

Full load current (50/60 Hz): 0.79A/0.82A

Inlet, outlet pipe diameter: O.D. 9mm×I.D. 5mm

Ambient temperature: 7 to 40˚C

Power source: AC115V/220V Single phase with step-down transformer

External dimensions: W146×D203×H182mm

Weight: Approx. 3.9kg
