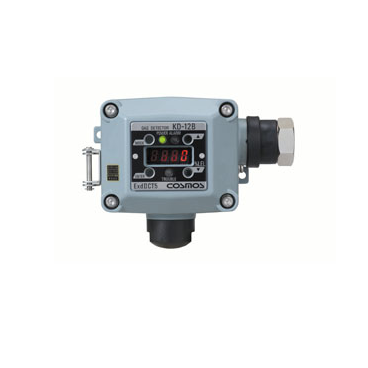

COSMOS KD-12B-SIL Combustion Gas, Toxic Gas Fixed Detector Head (%LEL, Catalytic)
Manufacturer: COSMOS Model: KD-12B-SIL - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Target Gas: Combustible gas, Toxic gas
Sensor type: Catalytic
Detection Range: %LEL
Power supply: 24 VDC (±20%)
Power consumption: 3W max
Repeatability: F.S: ±5%
External Output:
+ Gas concentration analog signal
・4-20mADC(common negarive with power supply)
+ Gas alarm contact (1st stage only)
・1a non-voltage contact output, non-latching
・HART communication protocol Rev. 7.5 (option)
Approvals: II 2 G Ex db IIC T5 Gb (ATEX); Ex db IIC T5 Gb (IECEx); Ex db IIC T5 (Janpan EX) IP65 rating
Temperature: -10 to +40 °C
Humidity: 10 to 90 %RH (0 to 50 °C)
Weight: Approx: 1.2kg
