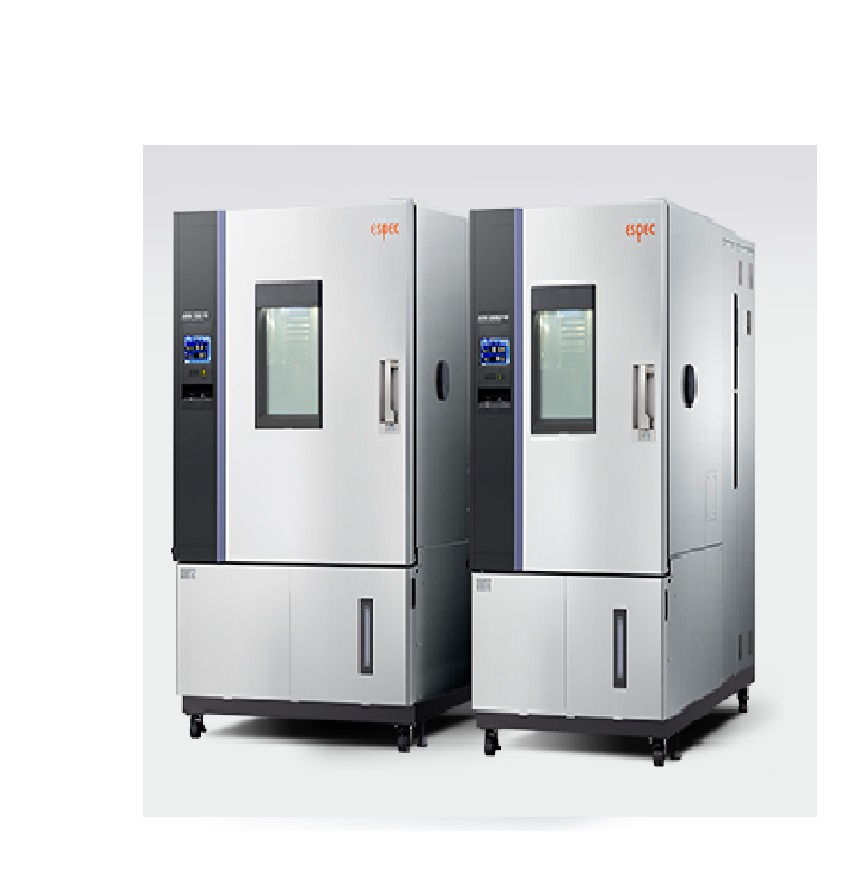

ESPEC ARS-1100-10 Temperature & Humidity Chamber (1100L; -70~180°C; 10~98%RH)

System: Balanced Temperature & Humidity Control (BTHC) system

Temperature performance:

Temperature range: -70 to +180°C (-94 to + 356°F)

Temp. rate of change:

            Heat up rate: 10K/min

            Pull down rate: 10K/min

            Allowable heat load: 9500 W

Humidity performance:

            Humidity range: 10 to 98%RH

            Allowable heat load: 600W

Water tank capacity: 40L

Capacity: 1100 L

Inside dimensions WxHxDmm: 1100×1000×1000

Outside dimensions WxHxDmm: 1300×1955×2455

Utility requirements:

           Ambient conditions: 0 to ＋40℃ (＋32 to ＋104℉) / Up to 75%rh

           Power supply: 220V AC 3φ50/60Hz, 114A

                                   380V AC 3φ50Hz, 53A

           Cooling water flow rate (Reference water temp. +25°C): 5100L/h

Weight: 1050 kg
