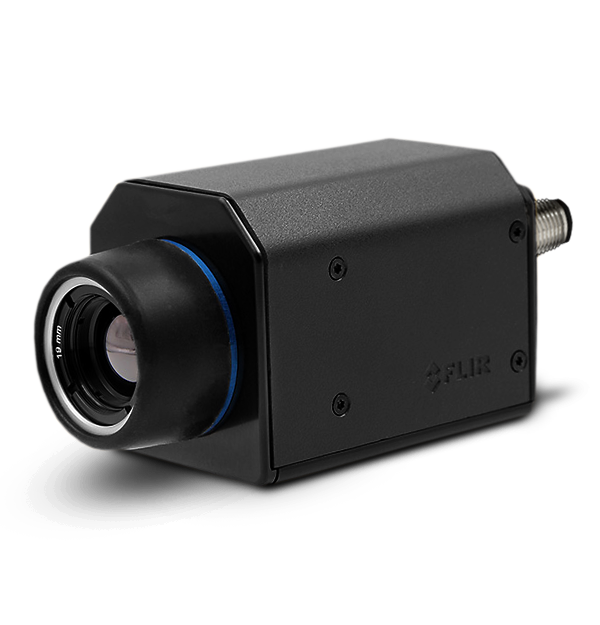

FLIR A35 Thermal Image Cameras (FOV 45, 60 Hz)

Digital I/O connector type: 12-pole M12 connector (shared with Digital Synchronization and External power)

Digital Inputs: 1× opto-isolated, "0" <1.2 VDC, "1" = 2–25 VDC.

Digital Output Purpose: General purpose output to ext. device (programmatically set)

Digital Outputs: 1× opto-isolated, 2–40 VDC, max 185 mA

EMC: •EN 61000-6-2 (Immunity) •EN 61000-6-3 (Emission) •FCC 47 CFR Part 15 Class B (Emission)

f-number: 1.4

Image Frequency: 60 Hz

Thermal Sensitivity/NETD: <0.05°C @ 30°C (86°F) / 50 mK

Accuracy: ±5°C (±9°F) or ±5% of reading

Communication & Data Storage

Digital I/O connector type: 12-pole M12 connector (shared with Digital Synchronization and External power)

Digital I/O isolation voltage: 500 VRMS

Digital I/O supply voltage: 2–40 VDC, max 200 mA

Digital Inputs: 1× opto-isolated, "0" <1.2 VDC, "1" = 2–25 VDC.

Digital Output Purpose: General purpose output to ext. device (programmatically set)

Digital Outputs: 1× opto-isolated, 2–40 VDC, max 185 mA

Digital Synchronization Connector Type: 12-pole M12 connector (shared with Digital I/O and External power)

Ethernet: Control and image

Ethernet Communication: GigE Vision ver. 1.2 Client API GenICam compliant

Ethernet Connector Type: RJ-45

Ethernet Image Streaming: 8-bit monochrome @ 60 Hz Signal linear/ DDE Automatic/ Manual Flip H&V 14-bit 320 × 256 pixels @ 60 Hz Signal linear/ DDE Temperature linear GigE Vision and GenICam compatible

Ethernet Power: Power over Ethernet, PoE IEEE 802.3af class 0 Power

Ethernet Protocols: TCP, UDP, ICMP, IGMP, DHCP, GigEVision

Ethernet Standard: IEEE 802.3

Ethernet Type: Gigabit Ethernet

Synchronization in: 1×, non-isolated

Synchronization in - purpose: Frame sync in to control camera

Synchronization in - type: LVC Buffer @3.3V, "0" <0.8 V, "1" >2.0 V.

Synchronization out: 1×, non-isolated

Synchronization out - purpose: Frame sync out to control another Ax5 camera

Synchronization Out - type: LVC Buffer @ 3.3V, "0"=24 MA max, "1"= –24 mA max.

Imaging & Optical

Detector Pitch: 17 µm

Detector Time Constant: Typical 12 ms

Detector Type: Focal plane array (FPA), uncooled VOX microbolometer

Field of view (FOV): 45° × 35°

FLIR Screen-EST Mode: No

f-number: 1.4

Focal Length: 7.5 mm (0.30 in.)

Focus: Fixed

Image Frequency: 60 Hz

IR Resolution: 320 × 256 pixels

Minimum Focus Distance: 2.5 cm (0.98 in.)

Spatial resolution (IFOV): 2.267 mrad

Spectral Range: 7.5–13 µm

Thermal Sensitivity/NETD: <0.05°C @ 30°C (86°F) / 50 mK

Measurement & Analysis

Accuracy: ±5°C (±9°F) or ±5% of reading

Atmospheric transmission correction: Automatic, based on inputs for distance, atmospheric temperature and relative humidity

Camera size (L x W x H): 104.1 × 49.6 × 46.6 mm (4.1 × 1.9 × 1.8 in.)

Emissivity Correction: Variable from 0.5 to 1.0

Measurement Corrections: Global object parameters

Object Temperature Range: -25°C to 135°C (-13 to 275°F) / –40°C to 550°C (-40 to 1022°F)

Optics Transmission Correction: Automatic, based on signals from internal sensors

Reflected apparent temperature correction: Automatic, based on input of reflected temperature

General

Base Mounting : 4 × M3 thread mounting holes (bottom)

Housing material: Magnesium and aluminum

Package Includes: Hard transport case; Infrared camera with lens; Base support; Cable tie (2 ea.); Ethernet cable CAT-6, 2m/6.6 ft (2 ea.); FLIR ResearchIR Standard 4 Focus adjustment tool; Gooseneck Mains cable kit (UK,EU,US); PoE Injector (power over Ethernet); Printed documentation Table stand

Packaging Size: Cardboard box

Environmental

EMC: •EN 61000-6-2 (Immunity) •EN 61000-6-3 (Emission) •FCC 47 CFR Part 15 Class B (Emission)

Encapsulation: IP 40 (IEC 60529) with base support mounted

Humidity (Operating and Storage): IEC 60068-2-30/24 h 95% relative humidity 25°C to 40°C (77°F to 104°F)

Operating Temperature Range: –15°C to +50°C (+5°F to +122°F) The operating temperature range assumes that the camera is mounted on the base support (included in the package) or a similar type of heatsink.

Shock: 25 g (IEC 60068-2-27)

Storage Temperature Range: –40°C to 70°C (–40°F to 158°F)

Tripod Mounting: UNC ¼"-20 (on three sides)

Vibration: 2 g (IEC 60068-2-6 & MIL-STD810G)

Power

External Power Connector Type: 12-pole M12 connector (shared with Digital I/O and Digital Synchronization )

External Power Operation: 12/24 VDC, < 3.5 W nominal < 6.0 W absolute max

Voltage: Allowed range 10–30 VDC
