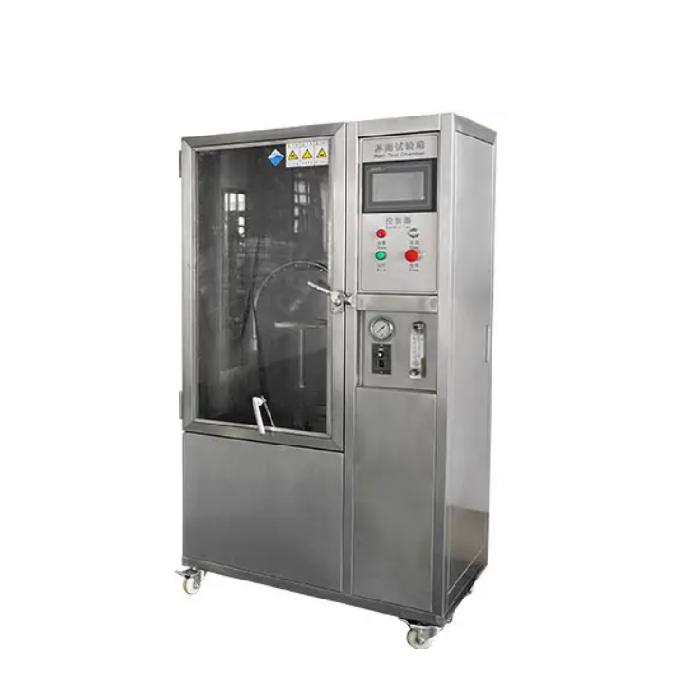

Huda HUD-E710-2 Water Spray Test Chamber (IPX3 & IPX4)

Internal dimension: (W*D*H)1000*1000*1000mm

External dimension: (W*D*H)1300*1100*1700mm

Oscillating tube: Radius 400mm

Oscillating angle:

     IPX3: spray ±60° from vertical line to each side, total 120°

     IPX4: spray ±180° from vertical line to each side, total 360°

Oscillating speed:

     IPX3: 2*120° for 4s

     IPX4: 2*360° for 12s

Spray nozzle: Diameter: 0.4mm, removable

Distance between two nozzles: 50mm

Turntable diameter: 500mm

Turntable rotation speed: 1-3 cycles/min

Water flow of each nozzle: 0.07 L/min +5%

Test duration: 1~999h999min, adjustable

Pressure gauge: 80-150Kpa

Distance from nozzle to specimen surface: 200mm

Chamber material: Stainless steel, with observation window

Safety protection device: Short circuit protection, grounding protection, water shortage protection, audible and visual alarm

Power supply source: 1-phase, 220V±10%, 50Hz
