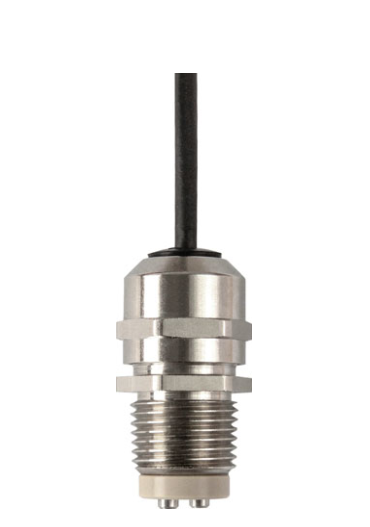

Jumo tecLine CR S01 Conductive two-electrode conductivity sensor (1 ~ 5000µS/cm (K=1.0))

Order code: 202928/10-0100-1005-128-24-20-5000/0

Basic type extension: Standard version

Cell constant: K = 1.0

Measuring insert: 1 × Pt1000 in two-wire circuit

Process connection: Thread M20 × 1.5

Process connection material: Stainless steel 1.4404 (CrNi 1.4404)

Electrical connection: Fixed cable connection

Length of permanent cable: 5000 mm

Extra codes: None

Details

The compact design type of the conductive two-electrode conductivity sensor enables space-saving installation. Due to its wide measuring range and resistance to cold, heat, and pressure, it is ideally suited for many applications in water treatment and monitoring.
