What Are the Criteria for Selecting a Digital Length Measuring Device?

This is an important question if you are looking for a modern, precise measurement tool for manufacturing and fabrication applications. The Digital Length Measuring Device, or Linear Scale/Encoder, plays an essential role in ensuring minimal measurement error and driving more efficient work productivity.

What is a Digital Length Measuring Device? Overview of Linear Scales and Applications.

A Digital Length Measuring Device (Linear Scale) is a tool used to accurately measure length, distance, or position using optical or electronic sensors. The Linear Scale converts physical position into a digital signal, providing fast and accurate measurement data, optimized for industrial applications.

Linear Scales are widely used in machining tools such as CNC milling machines, lathes, grinding machines, and CMMs (Coordinate Measuring Machines). For example, Insize and Mitutoyo Linear Scales are often equipped on CNC milling machines to precisely control axis movement, thereby enhancing the quality of the final product. These devices are increasingly popular due to their resistance to errors caused by vibration and temperature, and their ability to provide continuous measurement with high repeatability.

This device is crucial for modern machining tools to ensure accurate motion positioning and product dimensions.

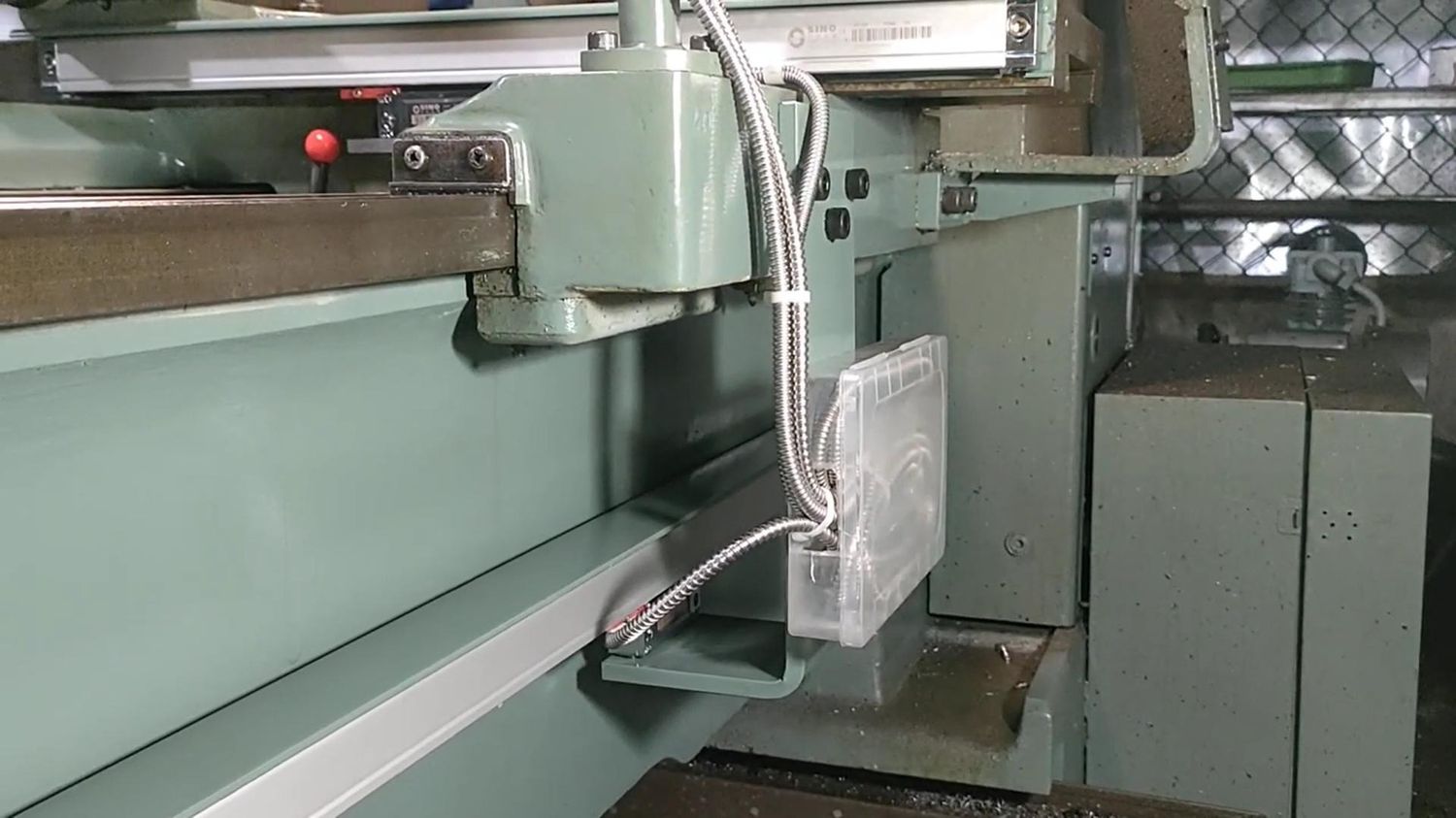

On CNC milling machines, the Linear Scale accurately measures the X, Y, and Z axes positions, allowing for the machining of complex parts with minimal deviation.

In CNC lathes, the Linear Scale controls the position of the cutting tool, helping to ensure the external and internal dimensions of the part meet standards.

Surface grinders and cylindrical grinders also use Linear Scales to measure motion, helping achieve smooth and precise surfaces.

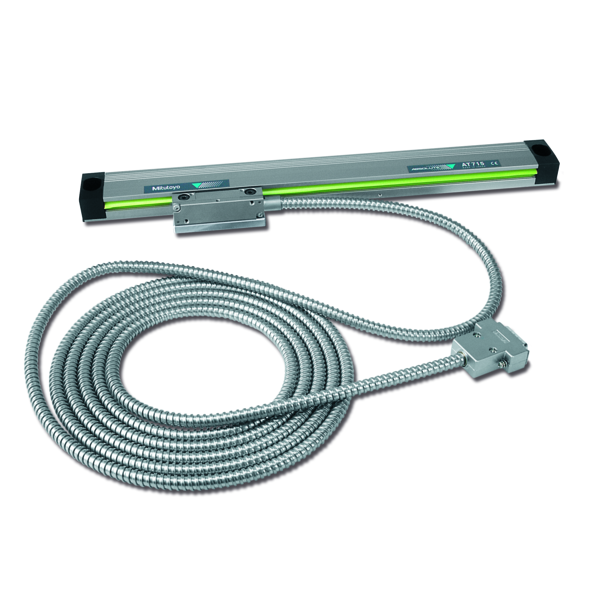

Digital Length Measuring Devices are also applied in CMMs to measure the complex dimensions of precision mechanical parts. The Mitutoyo 539-802R Absolute Linear Scale offers a resolution of up to 0.1 µm, helping boost production efficiency in factories manufacturing electronic components and precision mechanics.

Criteria for Choosing the Appropriate Digital Length Measuring Device

When selecting a Digital Length Measuring Device, you should focus on the following criteria to ensure the equipment meets your work requirements:

Accuracy and Resolution: This is the most crucial factor. The device must have adequate resolution to control the smallest errors you need to manage, such as the Insize Linear Scale with a resolution up to 1 micron, suitable for diverse applications.

Environmental Resistance: The machine needs to be dustproof and waterproof (IP65 or higher) and temperature-resistant to maintain measurement performance.

Ease of Installation and Integration: The Linear Scale should have dimensions and connection standards suitable for easy installation on existing machinery.

Software and Display Interface: You need a device with an easy-to-read digital display and user-friendly software that can connect to the CNC control system or a computer for data processing.

Durability and Maintenance: Choosing a reputable brand like Mitutoyo or Insize gives you peace of mind regarding durability, warranty, and after-sales service.

The Digital Length Measuring Device is an important tool that helps you precisely control dimensions and position during modern machining and inspection stages. Choosing the right device not only helps minimize errors and increase productivity but also saves long-term operating costs.
