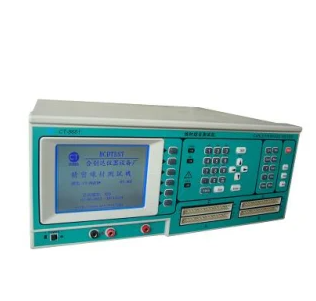

MICROTEST CT-8681 Precision Cable Tester (100V/200V-1000 DC, 100V-500VAC)
Manufacturer: MICROTEST Model: CT-8681 Origin: Taiwan - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Resistance: 0.01Ω~1MΩ
Capacitance: 10pF~1µF
Diode test: 0.0V~7.5V
Break-over: 0.1Ω~50Ω
Insulation: 1MΩ~500MΩ
High-voltage(drain current): 0.01mA~5mA
Circuit short-circuit test: 2kΩ~50KΩ
Basic accuracy: ±99%
Test scan mode: Automatic/Manual/Scan
Test speed: 0.1Sec
Measurement frequency/Voltage: 100-100KHZ 1VAC
Low voltage measurement signal: 5VDC ,50MA MAX
Accuracy: ±99.5%
High voltage insulation test: 100V/200V-1000 DC, 100V-500VAC, 50V Resolution, Accuracy:±95%
Power supply: 230VAC ±10%, 60/50HZ
Contact measurement: 128Pin, Optional: 256Pin
Automatically find point terminal
Humidity: RH≤75%
Size: 425*190*350mm
Weight: About 14KG
