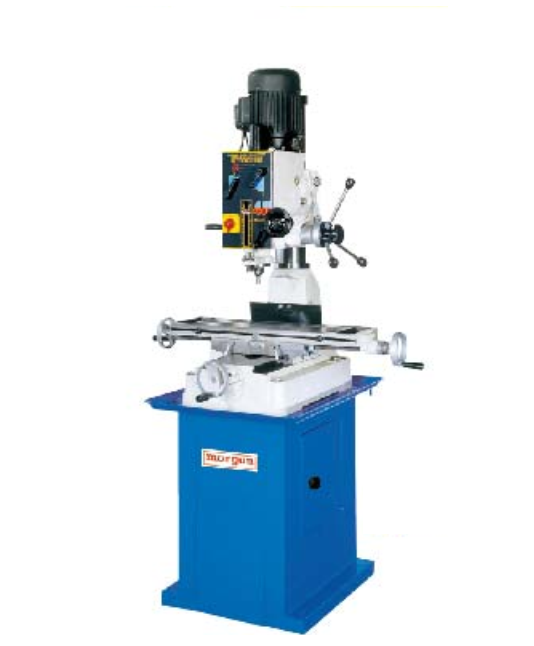

Morgon MD-40 Mill/ Drill Gear Head Type Machine (40/100/20 mm)
Manufacturer: Morgon Model: MD-40 Origin: Taiwan Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Drilling /face mill / end mill cap. ( steel ): 40/ 100/ 20 mm
Tapping cap. ( optional ): 20 mm
Longitudinal travel: 460 mm
Cross travel: 230 mm
Spindle stroke: 130 mm
Column diameter: Ø115 mm
Table size: 730 x 210 mm
T-slot ( width x pitch ): 16 x 26 mm
Spindle speed: 65~1550 rpm (6 steps)
Spindle speed ( optional ): 65~3100 rpm (12 steps)
Spindle taper: MT#3 or R8
Spindle motor: 1 HP : 3Ø / 1.5 HP: 1Ø
Net weight: 270 kgs
Details

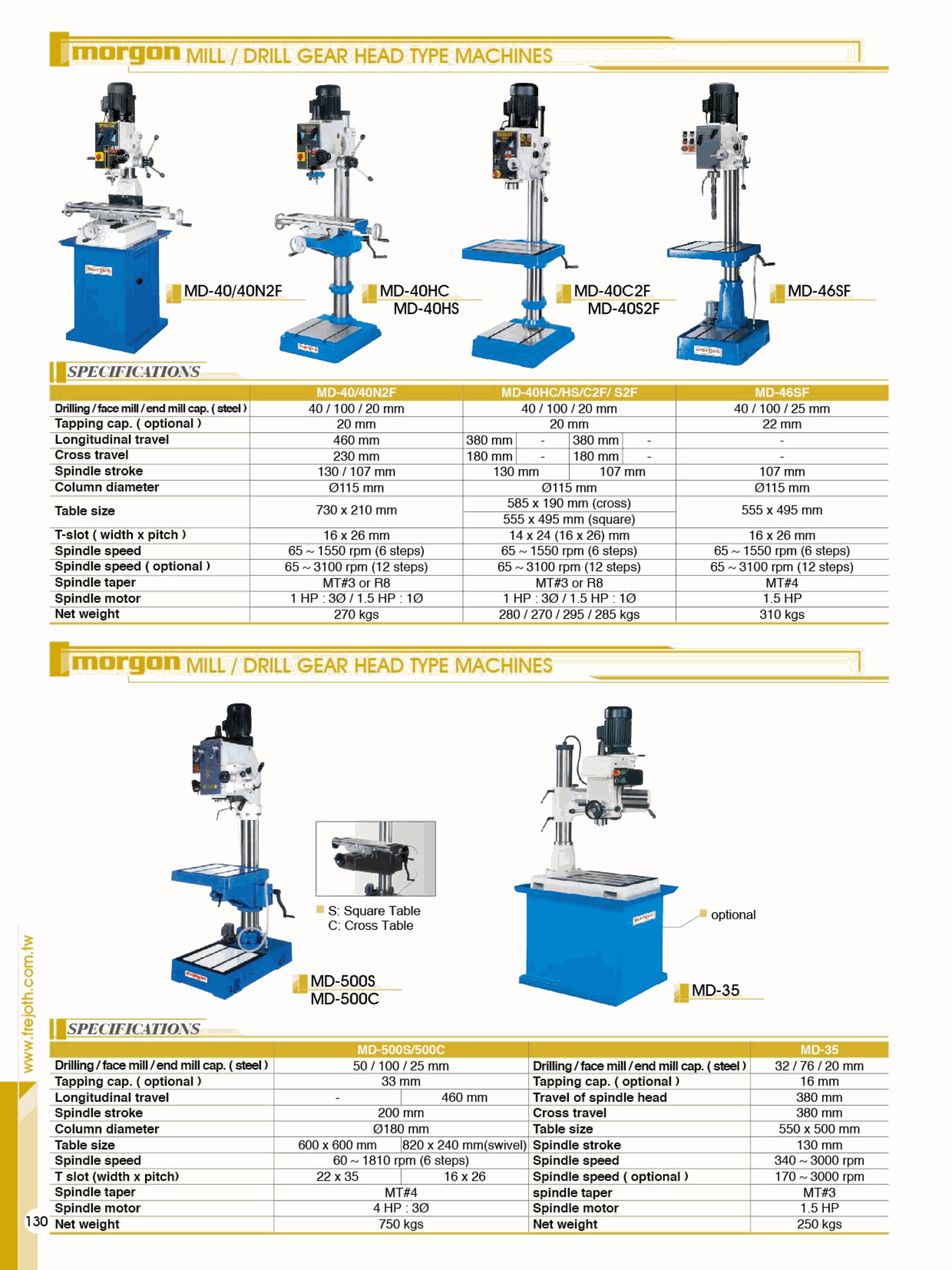

Datasheet
