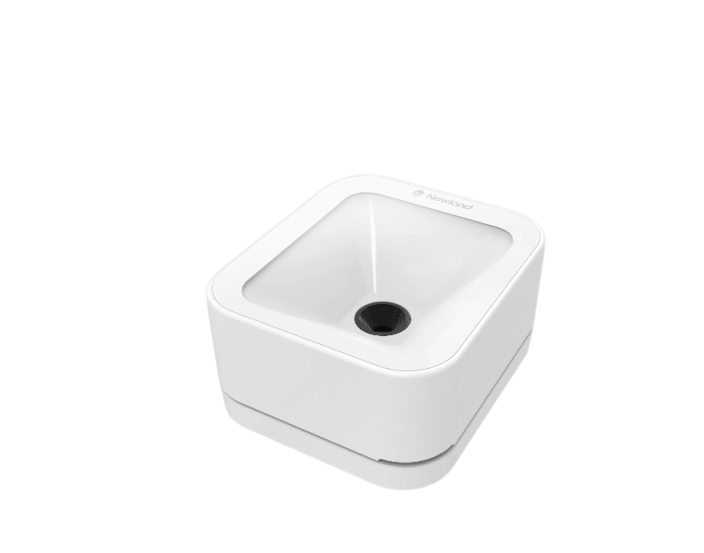

NEWLAND FR27 Desktop Scanner (20mm-105mm)
Manufacturer: NEWLAND Model: FR27 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Decode Capability: 1D, 2D, Postal
Connectivity Corded
Dimension: 66.3×76.3×38mm
Weight: 120g
Sealing: IP42
Interface: USB
Image Sensor: 640 * 480 CMOS
Resolution: ≥5mil
Typical Depth of Field
EAN-13: 20mm-105mm (13mil)
PDF417: 30mm-40mm (6.7mil)
Data Matrix: 30mm-45mm (10mil)
QR Code: 0mm-85mm (15mil)
Scan Angle
Roll: 360°, Pitch: ±75°, Skew: ±75°
Min. Symbol Contrast: 20%
Scan Mode: Sense mode, Continuous mode
Motion Tolerance: 2.7m/s
Field of View: Horizontal 68°, Vertical 51°, Diagonal 84.8°
Ambient Light: 0~100,000lux (natural light)
Rated Power Consumption: 698mW (typical)
