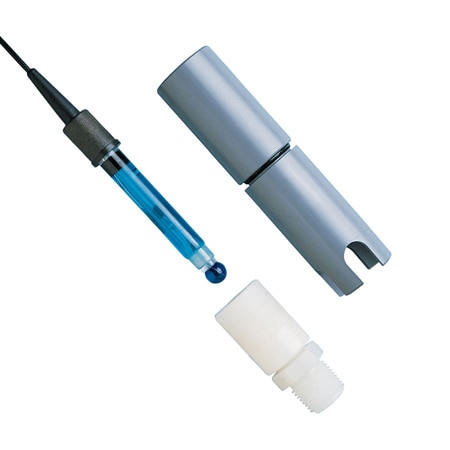

OMEGA PHE-5411-10-PT1K Preamplified Alpha® pH Electrodes (pH, 100 °C, 0 to 13 pH)
Manufacturer: OMEGA Model: PHE-5411-10-PT1K - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Height: 25 mm
Length: 127 mm
Diameter: 0 mm
Impedance: 10 kΩ
Unity Gain: 1
Sensor Type: Industrial in-line combination
Battery life: up to 1 yr
Cable Length: 10 ft
Output Detail: 0 pH = +414.1 mV 14 pH = -414.1 mV @ 25°C (77°F)
Supply Voltage: ±1.5 to ±9 Vdc
Insertion Length: 1 in
Measurement Type: pH
Construction Type: 1000 Ω Platinum RTD ATC
Electrical Output: ± 414.1 mV
Enclosure Ratings: None
Enclosure Material: None
PH Measurement Range: 0 to 13 pH
Electrical Connection: N/A
Process Connection Size: N/A
Process Connection Type: NPT Male
Temperature Sensor Type: N/A
Process Temperature, Max: 100 °C
Process Temperature, Min: 0 °C
