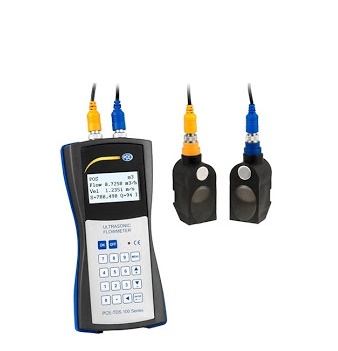

PCE TDS 100 Ultrasonic Flow Meter (57-720mm)

Handheld measuring range	-32 ... +32 m/s
Resolution	0.0001 m/s, 0.00033 ft/s
Accuracy for DN ≥ 50 mm: for DN < 50 mm:	±1.5 % of measured value ±3.5 % of measured value
Reproducibility	±1.0 % of measured value
Media	All liquids with an impurity <5% and a flow >0.03 m³/h
Flow units	Cubic meter [m³] Liter [l] Gallon (USA) [gal] Imperial gallon (UK) [igl] Million USA gallon [mgl] Cubic foot [cf] Barrel (USA) [bal] Imperial barrel (UK) [ib] Oil barrel [ob]
Time settings	per day [/d] per hour [/h] per minute [/m] and per second [/s]
Data logger	1800 measurements
Interface	USB (for online measurement and reading of the internal memory)
Protection	IP 52
Power supply	3 x AA NiMH rechargeable battery / 2100 mAh (at full charge 12h running time) 100 … 240 V AC 50/60 Hz
Dimensions	214 x 104 x 40 mm / 8.4 x 4.1 x 1.5"
Weight	450 g / 15 oz
Sensor (only PCE-TDS 100 H)	nominal width DN 50 … 700, 57 … 720 mm / approx. 2 ... 28"
Temperature of liquid	-30 … 160 °C / -22 ... 320 °F
Dimensions	50 x 45 x 45 mm / 1.9 x 1.7 x 1.7"
Weight	260 g / 9oz
Includes: 1 x Ultrasonic flow meter 2 x Sensor 2 x 5 m / 16.4 ft transducer connection cables 2 x Velcro cable ties 1 x Power adapter 1 x Ultrasound contact gel 1 x PCE tape measure 1 x Plastic case 1 x User manual
