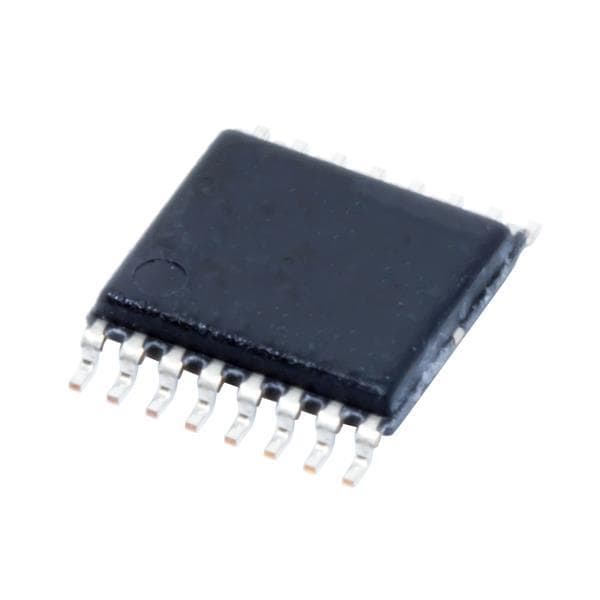

Texas Instruments INA209AIPWR High Side Measurement Bidirectional Current and Power Monitor Hi-Side Msmt Bi-Dir Current/Pwr Mon A 595-INA209AIPW
Manufacturer: Texas Instruments Model: INA209AIPWR - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Gain: Programmable
Accuracy: 1 %
Features: Alert Function, Bi-directional, Low-side Capable, Programmable Gain
Bandwidth: 11 kHz
Unit Weight: 62 mg
Mounting Style: SMD/SMT
Sensing Method: High Side
Development Kit: INA209EVM
Moisture Sensitive: Yes
Input Voltage Range: 3 V to 5.5 V
Description/Function: HIGH-SIDE MEASUREMENT, BI-DIRECTIONAL CURRENT/POWER MONITOR WITH I2C INTERFACE
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 3 V
Operating Supply Current: 1.5 mA
Operating Supply Voltage: 3 V to 5.5 V
Vos - Input Offset Voltage: 100 uV
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
