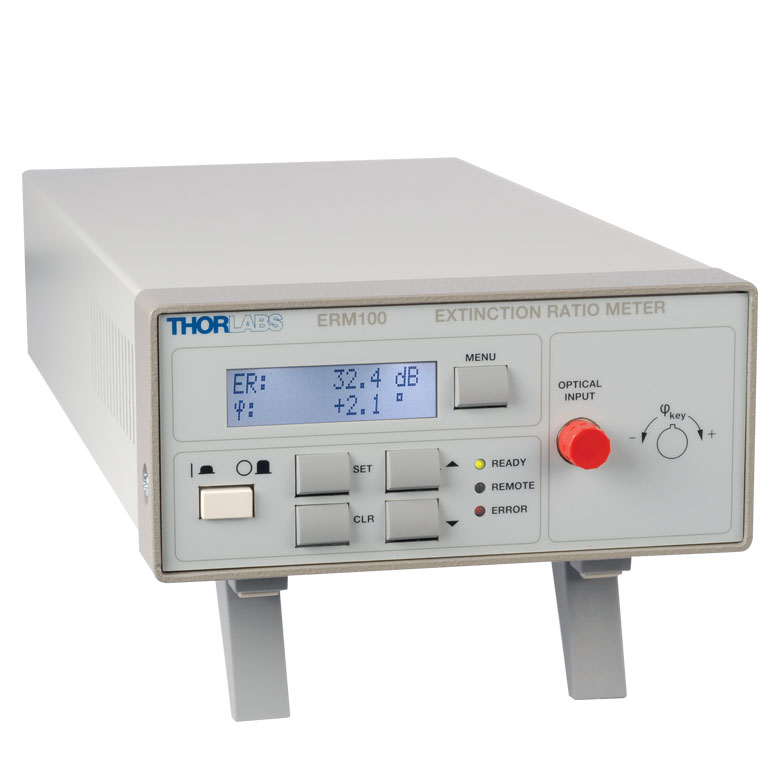

THORLABS ERM100 Extinction Ratio Meter (800 - 1700 nm)
Manufacturer: THORLABS Model: ERM100 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Wavelength Range: 800 - 1700 nm
Max. ER(b): >40 dB
ER Accuracy(b): 0.5 dB
ER Resolution: 0.1 dB
Angle Accuracy(b): 0.5°
Angle Resolution: 0.1°
Dynamic Range(c): -40 to 10 dBm
Operating Temperature: 5 to 40 °C
Line Voltage: 100 V, 115 V, 230 V +15%/-10%
(a) All specifications are valid at 23 ± 5°C and 45 ± 15% relative humidity.
(b) For input power > -30 dBm.
(c) Dynamic Range depends on specific wavelength.
