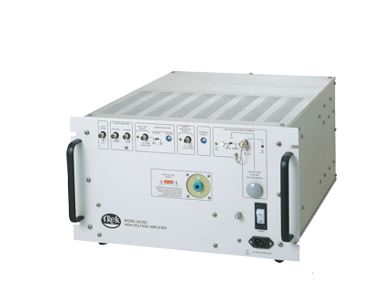

Trek 20/20C High-Voltage Power Amplifier
Manufacturer: TREK Model: 20/20C - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Output Voltage Range: 0 to ±20 kV DC or peak AC
Output Current Range: 0 to ±20 mA DC peak AC
Input Voltage Range: 0 to ±10 V DC or peak AC
Input Impedance: 25 kΩ, nominal
DC Voltage Gain: 2000 V/V
DC Voltage Gain Accuracy
Better than 0.1% of full scale
Offset Voltage: Less than ± 2 V
Output Noise: Less than 1.5 V rms*
Slew Rate (10% to 90%, typical): Greater than 450 V/µs
Large Signal Bandwidth (-3 dB): DC to greater than 7.5 kHz
Large Signal Bandwidth (1% distortion): DC to greater than 3.75 kHz
Small Signal Bandwidth (-3dB): DC to greater than 20 kHz
Dimensions: 279 mm H x 482 mm W 654 mm D
Weight: 24,9 kg
