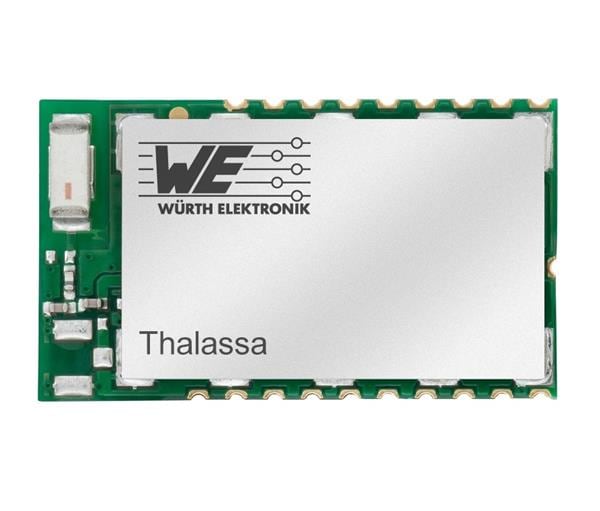

Wurth Elektronik 2606031021000 RF Modules WIRL-PRO2 Thalassa 2.4GHz w/integ ant
Manufacturer: Wurth Elektronik Model: 2606031021000 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Frequency: 2.4 GHz
Dimensions: 27.5 mm x 16 mm x 3.2 mm
Unit Weight: 2.010 g
Output Power: 0 dBm
Interface Type: UART
Moisture Sensitive: Yes
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 2.7 V
Operating Supply Voltage: 2.7 V to 3.6 V
Supply Current Receiving: 21 mA
Supply Current Transmitting: 25 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 30 C
