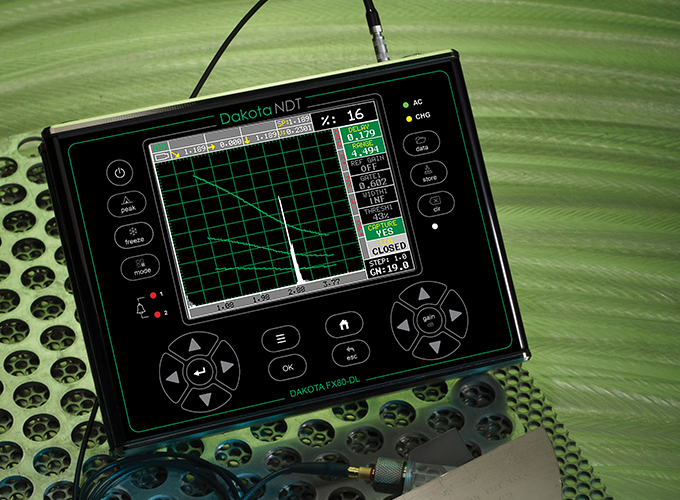

Dakota FX80-DL Flaw Detector

Measurement Range:

P-E:

Pulse Echo (Dual Contact) : 0.630 - 2440mm (0.025 – 96”)

Pulse Echo (Single Contact) : 1.000 - 30480mm (0.040 - 1200”)

E-E:

Echo Echo ThruPaint™ (Dual Contact): 1.270 - 102mm (0.050 - 4”)

Echo Echo (single delay line) : 0.178 - 25.4mm (0.007 - 1”)

Echo Echo (single contact) : 1.000 - 3050mm (0.040 - 120”)

Echo Echo Verify (EEV): 1.270 - 25.4mm (0.050 - 1”)

PETP:

Pulse Echo Temp Comp: 0.630 - 2440mm (0.025 – 96”)

CT:

Coating Thickness: 0.013 - 2.54mm (0.001 - 0.1”)

PECT:

Pulse Echo Coating Thickness (Coating) 0.010 - 2.54mm (0.001 - 0.1”)

Pulse Echo Coating Thickness (Substr.) 0.630 - 2440mm (0.025 – 96”)

Resolution: 0.01mm (0.001”); 0.001mm (0.0001”) selectable

Operating Temperature: -10 to 60ºC (14 to 140ºF)

Power Supply: 6 x AA batteries and via USB

Battery Life2: Alkaline (12hrs); Nicad (5hrs); and NI-MH (12hrs)

Gauge Weight: 2.04kg (4.5lbs) - including batteries

Gauge Dimensions: 216.0 x 165.0 x 70.0mm (8.5 x 6.5 x 2.5 inches)

Packing List: Unit; Selectable Transducer; Couplant; Manual; Power Cable; Plastic Carrying Case; Certificate of Calibration and AA Batteries. PC Software and Data Transfer Cable
