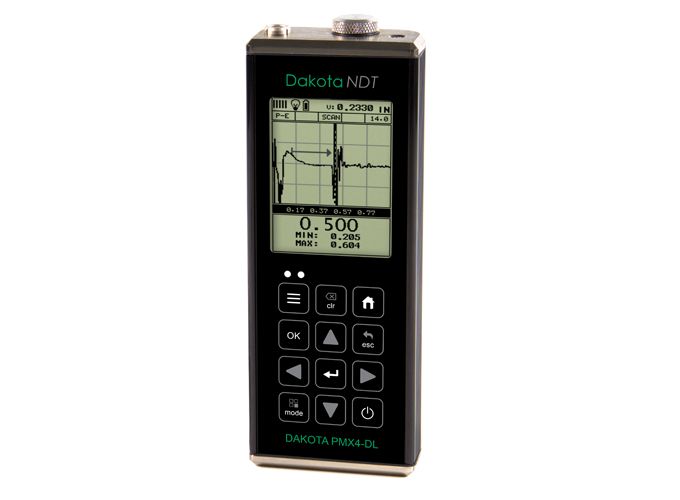

Dakota PMX4-DL High Penetration Thickness Gauge

Measurement Range:

PE contact on steel - 1.27 - 30500mm (0.05 - 1200")

PE Contact on plastics - 2.54 - 127mm (0.100 - 5")

EE contact on steel - 2.54 - 914.4mm (0.100 - 36")

EEV contact on steel - 2.54 - 152.4mm (0.100 - 6")

Resolution: +/- 0.1mm (0.01"); +/- 0.01mm (0.001") selectable

Operating Temperature: -10 to 60ºC (14 to 140ºF)

Power Supply: 3 x AA batteries and via USB

Battery Life: Alkaline: greyscale 35 hrs

Nicad: greyscale 10 hrs

NI-MH: greyscale 35 hrs

Gauge Weight: 383g (13.5oz) - including batteries

Gauge Dimensions: 63.5 x 165 x 31.5mm (2.5 x 6.5 x 1.24”)

Packing List: Unit; custom 1” Delay Line Transducer (Rubber Delay Line) & Cable; Couplant; Manual; Certificate of Calibration; AA Batteries and Plastic Carrying Case. PC Software (download) & transfer cable included.
