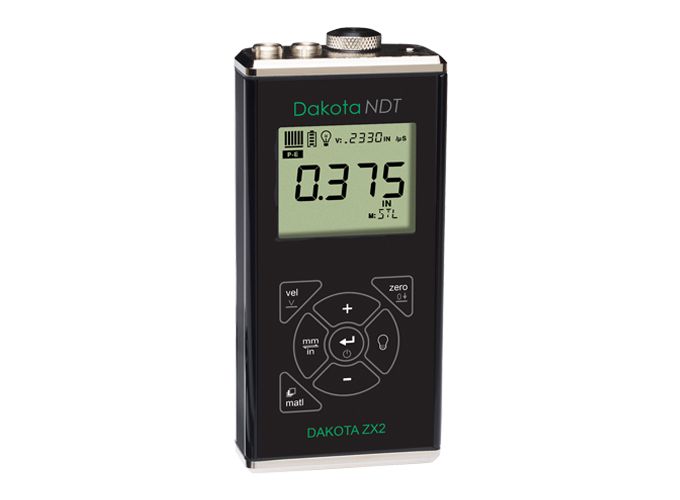

Dakota ZX2 Corrosion Thickness Gauge (PE: 0.63 - 914.4mm)

  • 生産者:Dakota
    Model: ZX2
    P/N: Z-301-0003
    • 要件クオート Request a Quotation
  • 連絡先
    • カートへ追加
    • 要件クオート
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Display Mode:

Material thickness digits display: ✓

Measurement Range: PE: 0.63 - 914.4mm (0.025 - 36")

Measurement Resolution: 0.01mm (0.001”)

Velocity Calibration Range: 305 - 18,542m/s (0.0120 - 0.7300in/μs)

Additional Features:

Velocity Settings: 2 user programmable & 8 pre-calibrated velocities for: aluminium, cast iron, plexiglass, polystyrene, polyurethane, PVC, stainless steel & steel

High Speed Scan Mode: -

Differential Mode: -

Limit alarm mode: -

Memory and Data Logging: -

Transducer Probe Type: Dual element

Transducer Frequency Range: 1 - 10MHz

V-path / dual path error correction: Automatic

Probe Zero: Manual (via integrated probe disk)

Display: 12.7mm (1/2") 4.5 digit LCD

Units (selectable): mm or inches

LED Backlight: on/off/auto

Repeatability / Stability Indicator: ✓

Operating Temperature: -30 to 75ºC (-22 to 167ºF)

Power Supply: 2 x AA batteries

Battery Life: Alkaline – 45 hrs and Nicad – 23 hrs

Gauge Weight: 312g (11oz) - including batteries

Gauge Dimensions: 63.5 x 131 x 31.5mm (2.5 x 5.17 x 1.24”)

Packing List: Unit, Selectable Transducer, Couplant, Manual, Plastic Carrying Case, Certificate of Calibration and AA Batteries. PC Software and Data Transfer Cable included with data logging gauges. PC software available for download from our website.
