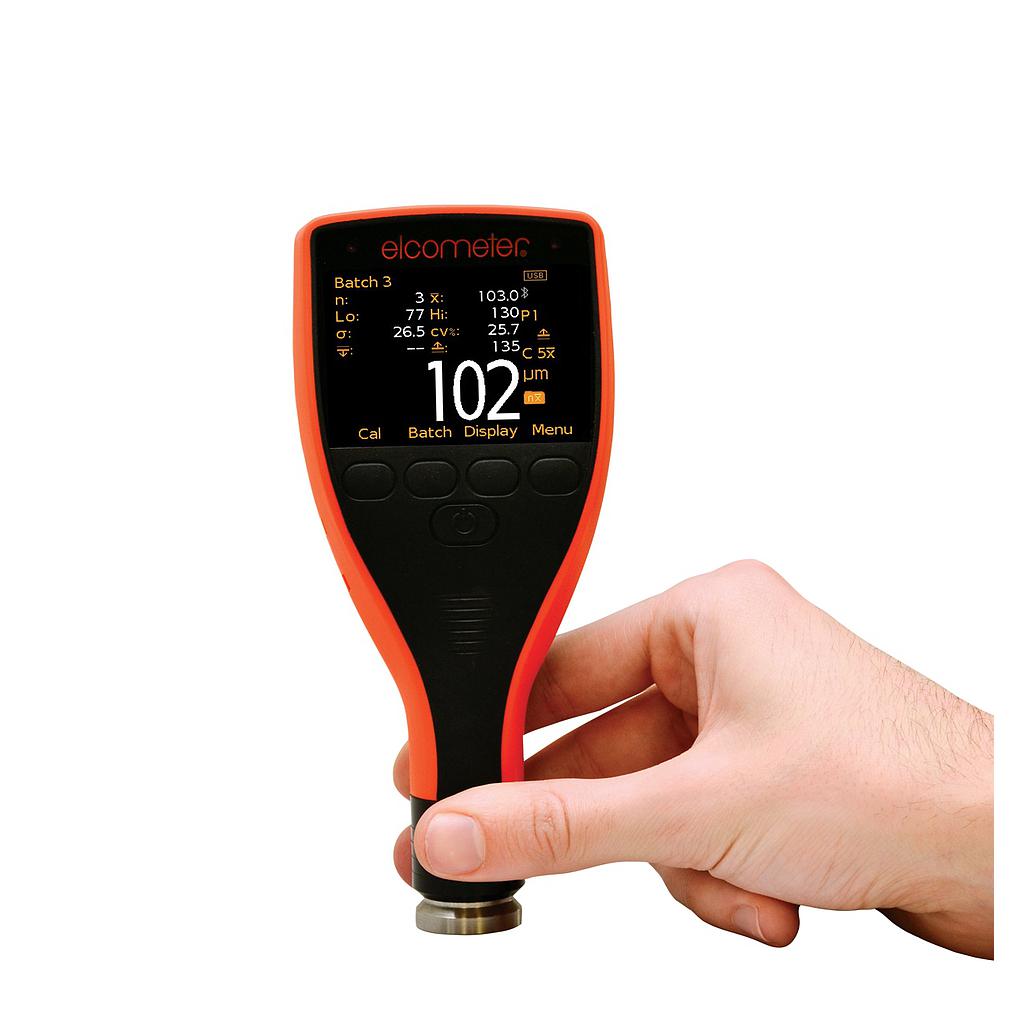

ELCOMETER E224C-BS デジタル面粗さゲージ (0-500μm)

Display information: 2.4” (6cm) QVGA colour TFT display, 320 x 240 pixels

Battery type: 2 x AA dry cell batteries, rechargeable batteries can also be used

Battery life: Approximately 24 hours of continuous use at 1 reading per second

Minimum Headroom: See Accessories

Gauge dimensions(h x w x d): 141 x 73 x 37mm (5.55 x 2.87 x 1.46”)

Gauge weight (including batteries) : 161g (5.68oz)

Measurement range: 0-500μm (0-20mils)

Probe tip: Tungsten carbide tip 60° angle; Tip Radius: 50μm (2mil)

Operating temperature: -10 to 50°C (14 to 122°F)

Storage temperature: -10 to 60°C (14 to 140°F)

Accuracy & Resolution:

Accuracy: ±5% or ±5μm (±0.2mil); Resolution: 1μm (0.1mil)

Packing List: Elcometer 224 gauge, glass zero tile, 2 x calibration foils†, wrist harness, protective case, screen protector, probe protection cap, 2 x AA batteries, test certificate, operating instructions
