ELCOMETER F510-50T 自動引き剥がし粘着力ゲージ (0.3~4 MPa)

Pressure Accuracy: ±1% of full scale

Pressure Resolution: 0.01MPa (1 psi)

Pull Rate Accuracy: ±(2.5% + 0.3 seconds)

Pull Rate Resolution: 0.01MPa/s (1psi/s)

Dolly Diameter: 50mm (1.96”)

Operating range: 0.3 - 4 MPa (50 - 580 psi)

Pull Rate Range: 0.02 - 0.22MPa/s (2 - 32psi/s)

Gauge Dimensions: 260 x 100 x 66mm (6.3 x 3.9 x 2.6”)

Actuator Height: 110mm (4.3”)

Instrument Weight: 3.1kg (8.3lb)

Kit Weight: 7.3kg (16.1lb)

Power Supply: 8 x AA batteries (16 rechargeable batteries supplied complete with charger) or AC mains power

Battery Life: ~200 pulls per charge up to 25MPa (3600psi) at 1MPa/s (150psi/s), recharge time <5 hours

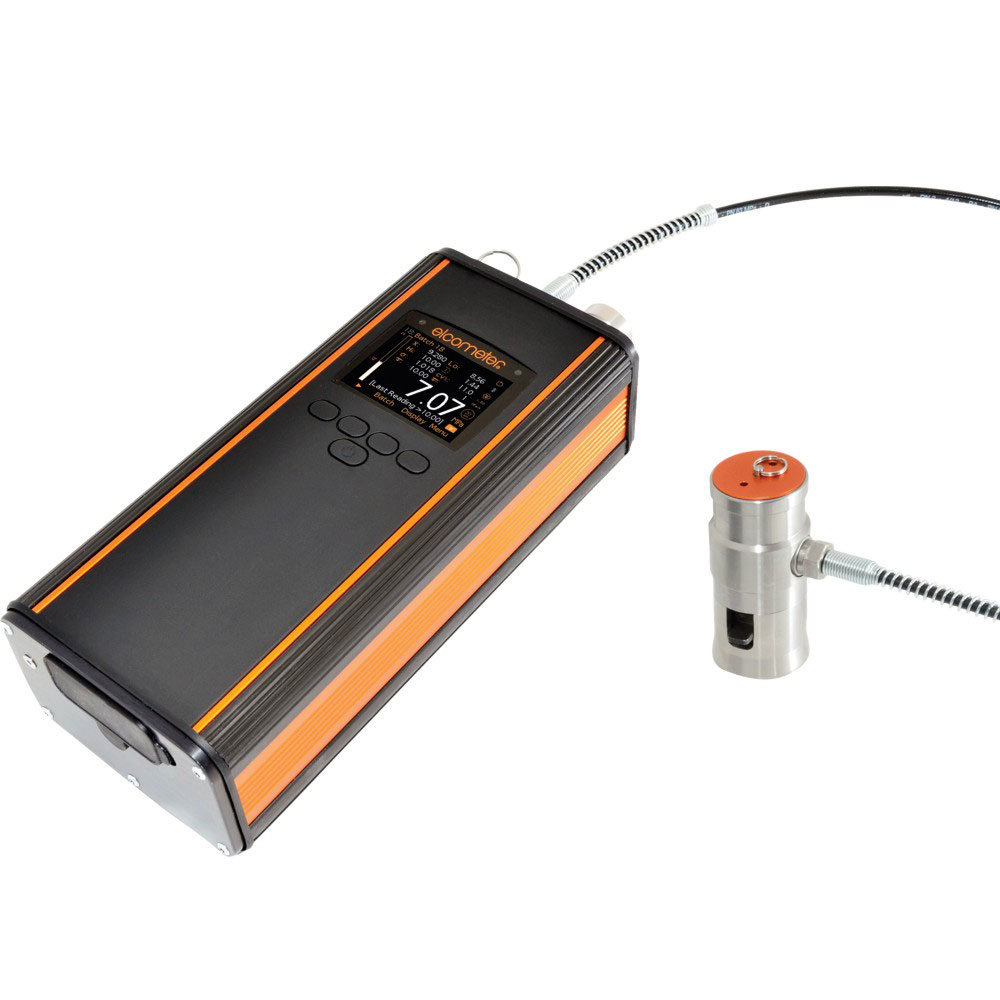

Packing List: Elcometer 510 Adhesion Tester with 50mm dollies (x6), standard skirt for 50mm dollies, 50mm dolly cutter arbor, 50mm dolly cutter, Araldite standard two part epoxy adhesive (2 x 15ml tubes), abrasive pad, shoulder harness, carry case, 16 x AA MiMH rechargeable batteries & charger (UK, EU, US, AUS), mains power supply (UK, EU, US, AUS) (Model T), ElcoMaster® CD & USB cable, calibration certificate and operating instructions.
