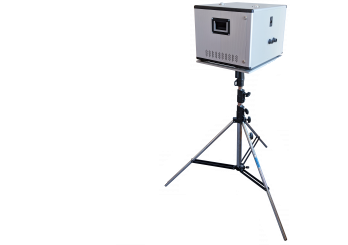

Gigahertz-Optik SST-1802 太陽シミュレーターのUV-VIS-NIRスペクトル放射照度測定用分光放射計 (200 nm - 3000 nm)

-Measurement ranges: Spectral irradiance 200 nm to 2150 nm. Integral irradiance 2150 nm to 3000 nm.

-Typical applications: Spectral irradiance measurement of artificial optical radiation sources such as solar simulators for product testing, photovoltaic applications and for photobiological safety assessment.

-Calibration: Factory calibration of irradiance responsivity.

-wavelength range 200 nm - 3000 nm

-Software: Application Software S-BTS2048

-Detector:

BTS2048-IR (950 nm to 2150 nm)

BTS2048-VL-TEC (280 nm to 1050 nm)

BTS2048-UV-S (200 nm to 430 nm)

additional broadband detector for measuring the irradiance up to 3000 nm

-Housing: temperature stable as long as surrounding air temperature is within specification splashproof

-Temperature range:

Storage: (-10 bis 50)°C

Application: (10 bis 30)°C

-Weight: 23 kg

-Dimensions: 461 mm x 315 mm x 400 mm

-Voltage Input: mains voltage (110 -230) V (50-60) Hz
