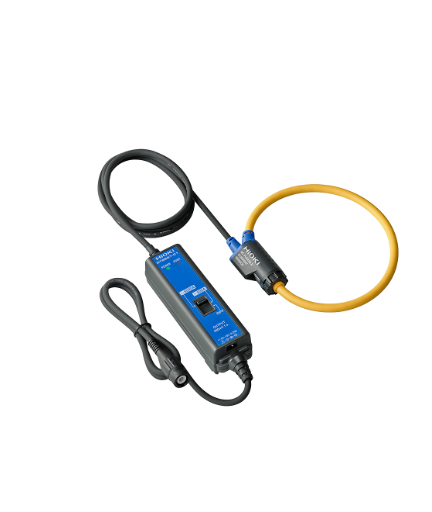

HIOKI CT9667-02 AC Flexible Current Sensor (5000 A AC/ 500 A AC, φ180 mm)

  • 生産者:HIOKI
    Model: CT9667-02
    • 要件クオート Request a Quotation
  • 連絡先
    • カートへ追加
    • 要件クオート
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Rated input current: 5000 A AC/ 500 A AC

Max. allowable input: 10000 A continuous (45 to 66 Hz, requires derating at frequency)

Bandwidth: 10 Hz to 20 kHz (±3dB)

Amplitude and phase accuracy: ±2 % rdg. ±0.3 % f.s. (45 to 66 Hz, at center of flexible loop)

Phase: ±1 deg (45 to 66 Hz)

Output voltage:

500 mV AC/f.s. (0.1 mV AC/A) at 5000 A range

500 mV AC/f.s. (1 mV AC/A) at 500 A range

Max. rated voltage to earth: 1000 V AC (CAT III), 600 V AC (CAT IV)

Core diameter: φ 180 mm (7.09 in)

Output terminal: BNC

Operating temperature: -25 °C to +65 °C (-13 °F to 149 °F)

Power supply: LR6 (AA) alkaline batteries ×2, Continuous use : 7 days (rated power 35 mVA), or AC adapter 9445-02/-03 (rated power 0.2 VA), or External power supply 5 to 15 V DC (rated power 0.2 VA)

Dust and water resistance: Flexible loop only: IP54 * Do not use when wet.

Dimensions and mass:

Flexible loop cable diameter: φ7.4 mm (0.29 in)

Cable length: Between flexible loop and battery box: 2 m (6.56 ft)

Output cable: 1 m (3.28 ft), Battery box: 35 mm (1.38 in)W × 120.5 mm (4.74 in)H × 34 mm (1.34 in)D, 280 g (9.9 oz)

Included accessories: LR6 (AA) alkaline batteries ×2, Instruction manual ×1
