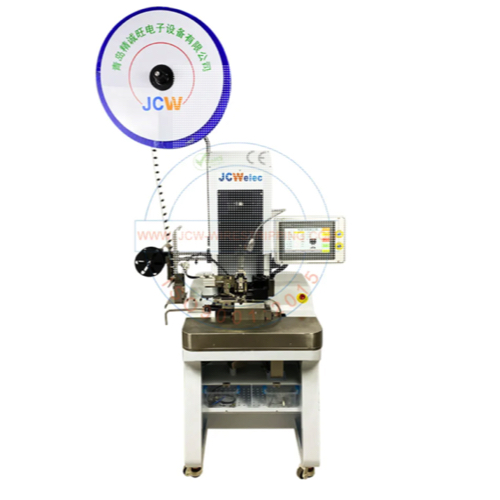

JCW JCW-4TC Servo Motorized 8mm² Wire Stripping to Crimping Machine (1 - 15 mm, 4 tons)
生産者: JCW Model: JCW-4TC - 連絡先
전화번호: いい価格のため、連絡しなさい
ホットライン: (+84) 968060220
電話番号: +84 (24)62923267
Function: Single wire, Multiconductor cable, Wire stripping, Terminal crimping
Terminal type: Side-feed type (horizontal)
Raw material: AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV
Crimp force: 4 tons
Conductor cross-sections: AWG 36 - AWG 8
Stripping length: 1 - 15 mm
Cutting accuracy: 0.05 - 0.1 mm
Position accuracy: 0.05 - 0.1 mm
Stroke: 30 mm
Stroke numbers: 4000 / h
Rated power output: 1500 W
Touch screen: 7", English / CHINESE
CFM: Compatible
Power supply: AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply: 0.5 - 0.7 MPa (clean and dry air)
Dimensions: L 1200 x W 800 x H 2100 mm
Weight: 150 KG
• Wire stripping and terminal crimping in one cycle
• Servo motor control crimping machine, fully programmable
• Adapt Europe mini-style terminal crimp applicator
• 4 tons crimping force, wire range up to 8 mm²
• Stripping length up to 15mm
• Scrap collector ensures a clear working area
