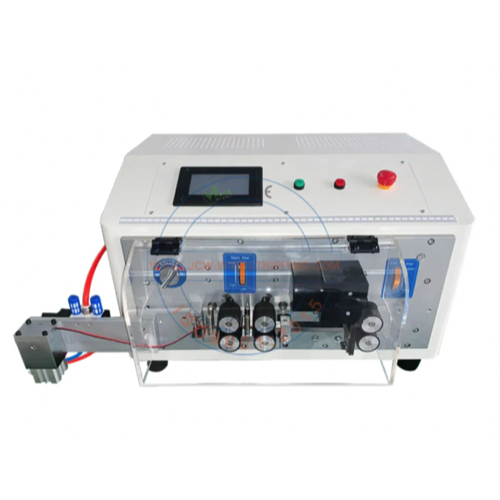

JCW JCW-CS06Z 2 Cores Twin Flat Cable Split Cut Strip Machine (0.1 - 999999 mm)

  • 生産者:JCW
    Model: JCW-CS06Z
    • 要件クオート Request a Quotation
  • 連絡先
    • カートへ追加
    • 要件クオート
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Function: Single wire, Zipcord, Wire measuring and slitting, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Wire run-out sensor, Length correction

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc.

Cutting length (L): 0.1 - 999999 mm

Cutting length accuracy: 0.002 x L

Stripping length: Front (right) side: 150 mm [partial stripping], Rear (left) side: 70 mm [partial stripping]

Middle strip: 13 sections

Production rate: 2500 pcs/h by 100mm wire length

Data library: 100 programs

Display: 4.3" color touchscreen, English / Chinese [other languages on request]

Cable feeding: 6 rollers

Compatible peripherals: Cable prefeeding unit, robot arm, cable stacker

Power supply: AC 110 - 220 V ± 10%, 50 / 60 Hz

Air supply: 0.4 - 0.7 MPa [clean and dry air]

Dimensions: Machine: L 560 x W 470 x H 370 mm, Wire straightener: 250 mm

Weight: 45 KG

Details

• 2 core twin flat cable, zipcord

• Precise separation causes no damage to cable

• PVC, Teflon, Silicone, Low halogen, Fiber glass cables

• 4.3" color touch screen

• User-friendly English interface

• 6 rollers driven by high torque hybrid step motors

• Fully programmable, saves 100 programs
