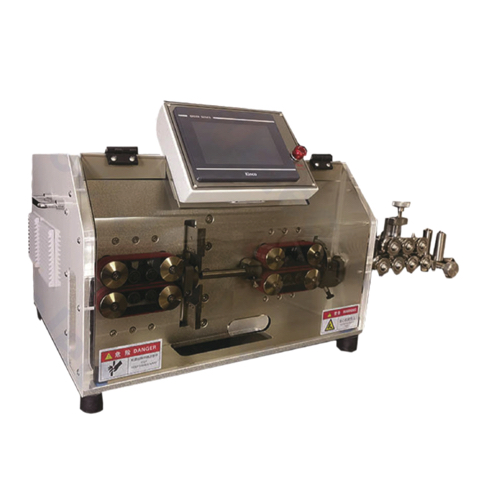

JCW JCW-CS15N Multicore Cable Cutting and Stripping Machine (1-30 mm², 1mm-99999.99mm)

  • 生産者:JCW
    Model: JCW-CS15N
    • 要件クオート Request a Quotation
  • 連絡先
    • カートへ追加
    • 要件クオート
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Function: Multi-core cable, outer & inner stripping

Capacity: 1-30 mm² [bigger cable on request]

Cutting length (L): 1mm-99999.99mm

Cutting accuracy: 0.002*L

Stripping length: Front: Outer 10-120mm, Inner 1-120mm; Rear: Outer 10-120mm, Inner 1-80mm

Guide tube: Мах Ф16 mm

Display: 7" Color screen, English/Chinese/Customizable

Data library: 100 programs

Product rate: JC

Single wire: 2300 pcs/h (see cutting length)

Multicore cable: 800 pcs/h (see cutting length)

Feed system: Belt feeding, 16 rollers

Dimensions: L 450mm x W 490mm x H 930mm (includes straightener)

Weight: 83 KG
