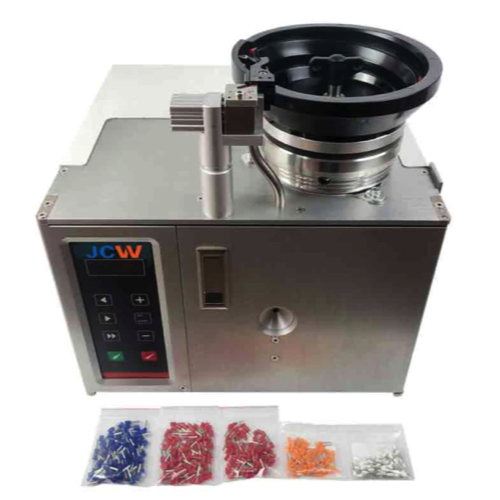

JCW JCW-F2 Loose Pre-insulated End Sleeve Stripper Crimper (6 - 12 mm, 17mm)
生産者: JCW Model: JCW-F2 - 連絡先
전화번호: いい価格のため、連絡しなさい
ホットライン: (+84) 968060220
電話番号: +84 (24)62923267
Function: Single wire, Multicore cable, Wire end stripping, Tubular insulated terminal crimping, Quadrangle crimping, Stripping length, Cutting depth, Data library
Conductor cross-section: 0.5, 0.75, 1.0, 1.5/2.5 mm² [changing vibrate bowl]
Stripping length: Max 17 mm
Crimping shape: Quadrilateral [imitating square]
Crimping length: 6 - 12 mm
Cycle time: 1.8 seconds
Air supply: 0.6 - 0.8 MPa (clean and dry air)
Power supply: AC 110 - 220V ± 10%, 50 / 60 Hz
Dimensions: L 390 x W 380 x H 390 mm
Weight: 32 KG
• Ideal electro-pneumatic controlled strip & crimp machine
• Automatic wire stripping and ferrule crimping 2 in 1
• Loose piece tubular bootlace ferrules in different lengths
• Insulated end sleeves ranging from 0.5 to 2.5 mm²
• Fast exchanging a few parts for different cross-sections
• Robust construction, reliable operation, industrial quality
