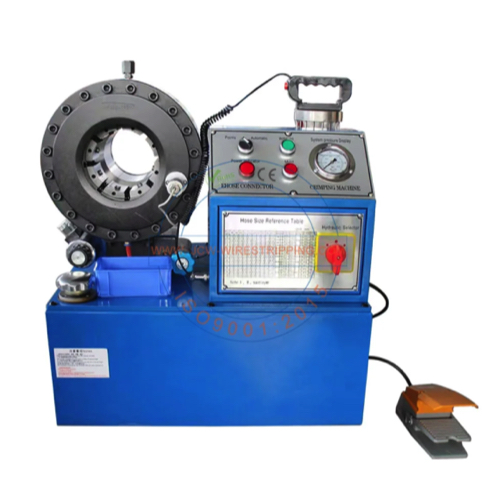

JCW 120D Hydraulic Hose Crimping Machine (200 T, 3-80 mm)

H.C. Material: 3-80 mm

Conductor cross-section: Forge Steel (Cr40)

Max. Hydraulic hose: 2", 4SP (ID 51MM)

Max opening: + 25 mm

Crimp force: 200 T

OEM: Yes

Die sets: 10 sets

Open cycle: 4.5 seconds

Open without dies: 118 mm

Accessible diameter: 118 mm

Master die length: 80 mm

System pressure: 31.5 MPa

Control: Automatic / Semi-automatic

Power supply: AC 110 - 480V

Rated power: 4 KW

Noise level: 65 dB(A)

Dimensions:

Weight: 220 KG

Details

• Cr40 forge steel made H.C, more than 6 months aging treatment

• 2mm thick hardened layer

• Pipeless hydraulic valve-block connection

• Stable pressure conduction fits in any workshop

• Semi-auto mode achieves accurate crimping

• Fully-auto mode enables batch crimping

Video

生産者:	JCW
Model:	120D
