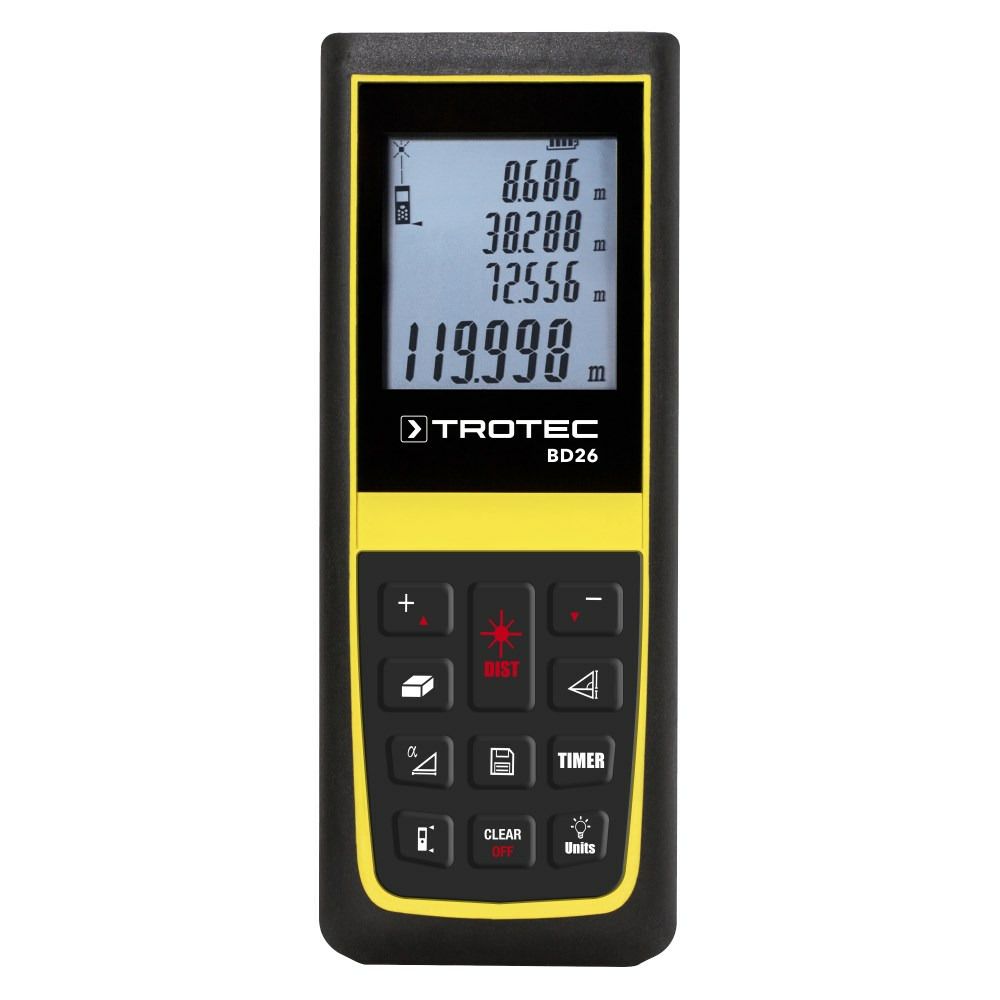

Trotec BD26 Distance meter (0.05~120m; ±2 mm)

  • 生産者:Trotec
    Model: BD26
    P/N: 3.510.205.161
    • 要件クオート Request a Quotation
  • 連絡先
    • カートへ追加
    • 要件クオート
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Distance measurement:

Min. measuring range | Distance measurement: 0.05 m (0.16 ft)

Min. measuring range [m]: 0.05

Max. measuring range [m]: 120

Min. measuring range [ft]: 0.16

Max. measuring range [ft]: 394

Max. typical range: 130 m (427 ft)

Typical measuring tolerance: ±2 mm (± 0.08 in)

Inclination measurement:

Measuring range | Inclination measurement: 45 °

Accuracy to the laser beam: ±0.3 °

Accuracy to the housing: ±0.3 °

Laser:

Ø of the laser point at distance 10 [mm]: 6

Ø of the laser point at distance 50 [mm]: 30

Ø of the laser point at distance 100 [mm]: 60

class: 2

output < [mW]: 1

Memory organisation:

Recall of previous measurements: 10

Device control:  Push buttons: ✓

Housing design:  Plastics: ✓

Type of protection:  IP41: ✓

Power supply:

Internal (battery): 2 x 1.5 V, AA

Measurements per battery set: 5.000 ~ 8.000

Ambient conditions:

Operation - min. temperature [°C]: 0

Operation - max. temperature [°C]: 40

Storage - min. temperature [°C]: -20

Storage - max. temperature [°C]: 70

Dimensions:

Length (packaging excluded) [mm]: 27

Width (packaging excluded) [mm]: 49

Height (packaging excluded) [mm]: 118

Tiefe (packaging excluded) [mm]: 27

Weight:  (packaging excluded) [kg]: 0.15
