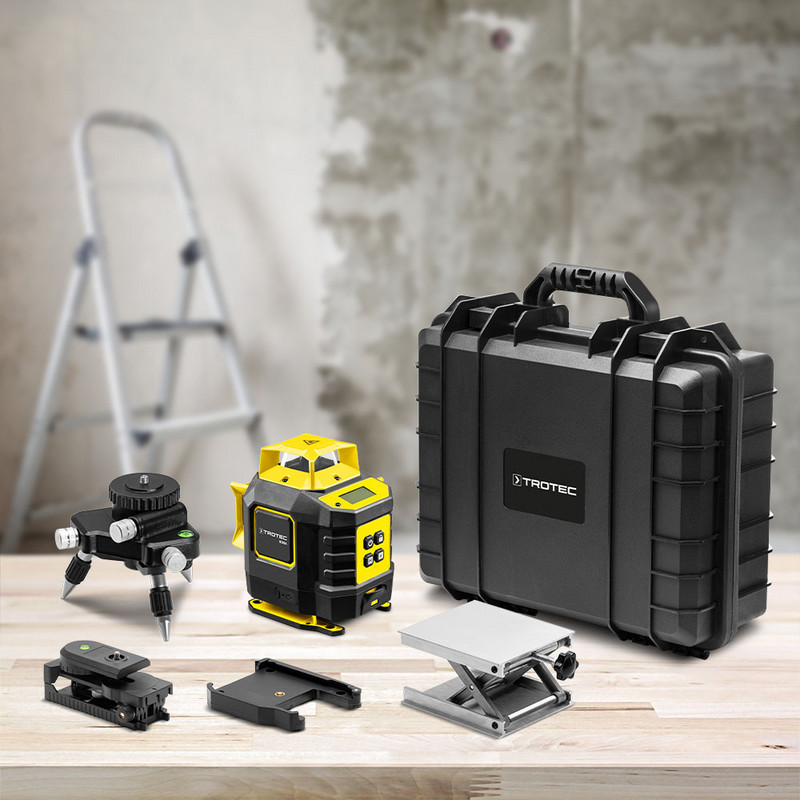

Trotec BD8A Rotational Laser (3.5° ±1)

  • 生産者:Trotec
    Model: BD8A
    P/N: 3.510.205.166
    • 要件クオート Request a Quotation
  • 連絡先
    • カートへ追加
    • 要件クオート
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Nivellierung:

Nivellierungsbereich [°]: 3.5° ±1

Genauigkeit horizontal [mm/m]: ±1.5 / 5

Genauigkeit vertikal [mm/m]: ±1.5 / 5

Nivellierungsdauer [s]: ≤3

Laser:

Range [m]: 30 m

Laserfarbe: grün

class: 2

output < [mW]: 1

wavelength [nm]: 515

Display:

LCD (schwarz/weiß) 1,3": ✓

Device control:

Push buttons: ✓

Housing design:

Plastics: ✓

Type of protection:

IP54: ✓

Power supply:

Internal (battery): 2 x 18.650 Li-Ion-Akku 3,7 V DC / je 2.000 mAh

Ambient conditions:

Operation - min. temperature [°C]: -10

Operation - max. temperature [°C]: 50

Operation – max. relative humidity (non-condensing) [%]: 70

Storage - min. temperature [°C]: -20

Storage - max. temperature [°C]: 60

Storage - max. relative humidity (non-condensing) [%]: 80

Functions and features:

Cardanic automatic levelling: ✓

Optical warning outside the automatic levelling range: ✓

Individual/total activation of the integrated lasers: ✓

Tripod thread: ✓

Laser locking function (transport protection) and possibility of inclination: ✓

Dimensions:

Width (packaging excluded) [mm]: 105

Height (packaging excluded) [mm]: 132

Tiefe (packaging excluded) [mm]: 130

Weight:

(packaging excluded) [kg]: 0.747
