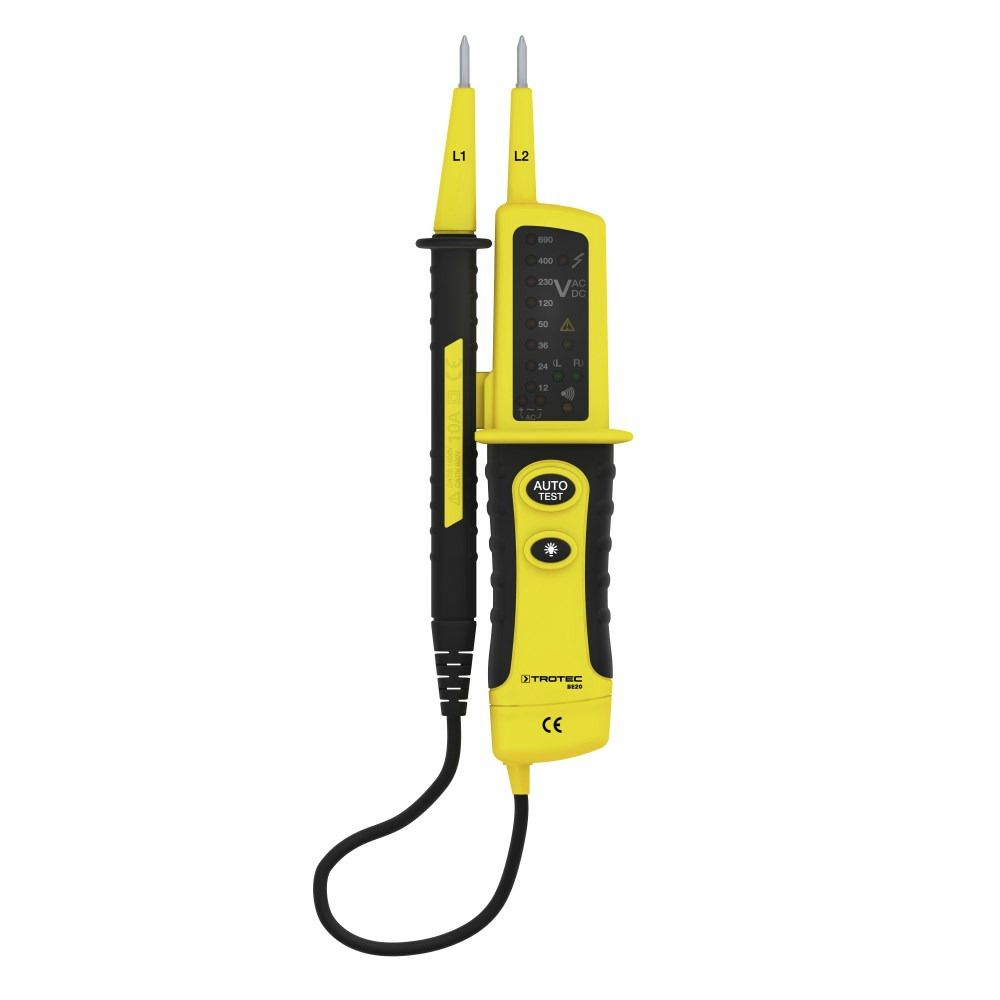

Trotec BE20 Voltage tester (12 – 400 V; CAT III 600 V)

  • 生産者:Trotec
    Model: BE20
    P/N: 3.510.205.230
    • 要件クオート Request a Quotation
  • 連絡先
    • カートへ追加
    • 要件クオート
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Parameter Value

Voltage indication: 12–690 VDC; 12–400 VAC

Voltage detection:Automatic

Display tolerance: -30 % to 0 % of the displayed value

Polarity indicator: + / - / ~

Display delay: < 0.1 s LED

Frequency range: 50 / 60 Hz

Power consumption: approx. 2.1 W for 600 V

Current consumption: ls < 0.2 A

Maximum permissible measuring time for voltages duty cycle: = 30 s

Rest period between voltage detections: 10 minutes

LED display from: > 8 V AC/DC

Operating temperature: -10 °C to +55 °C

Relative humidity: 85 % max.

Overvoltage category: CAT III – 600 V

Type of protection: IP64

Dimensions (length x width x height): 240 x 40 x 78 mm

Battery: 2 x 1.5 V AAA

Weight: 237 g

Unipolar phase testing

Voltage range: 100 to 690 V AC

Frequency range: 50/60 Hz

Continuity test

Measuring range: < 300 kΩ

Test current: < 5 µA

Overvoltage protection: 690 V AC/DC

Phase sequence indicator

Voltage range: 100 to 400 V

Frequency range: 50/60 Hz

Measuring principle: double-pole and contactelectrode

Scope of delivery

• 1 x Voltage detector BE20

• 1 x manual

Details

Manual
