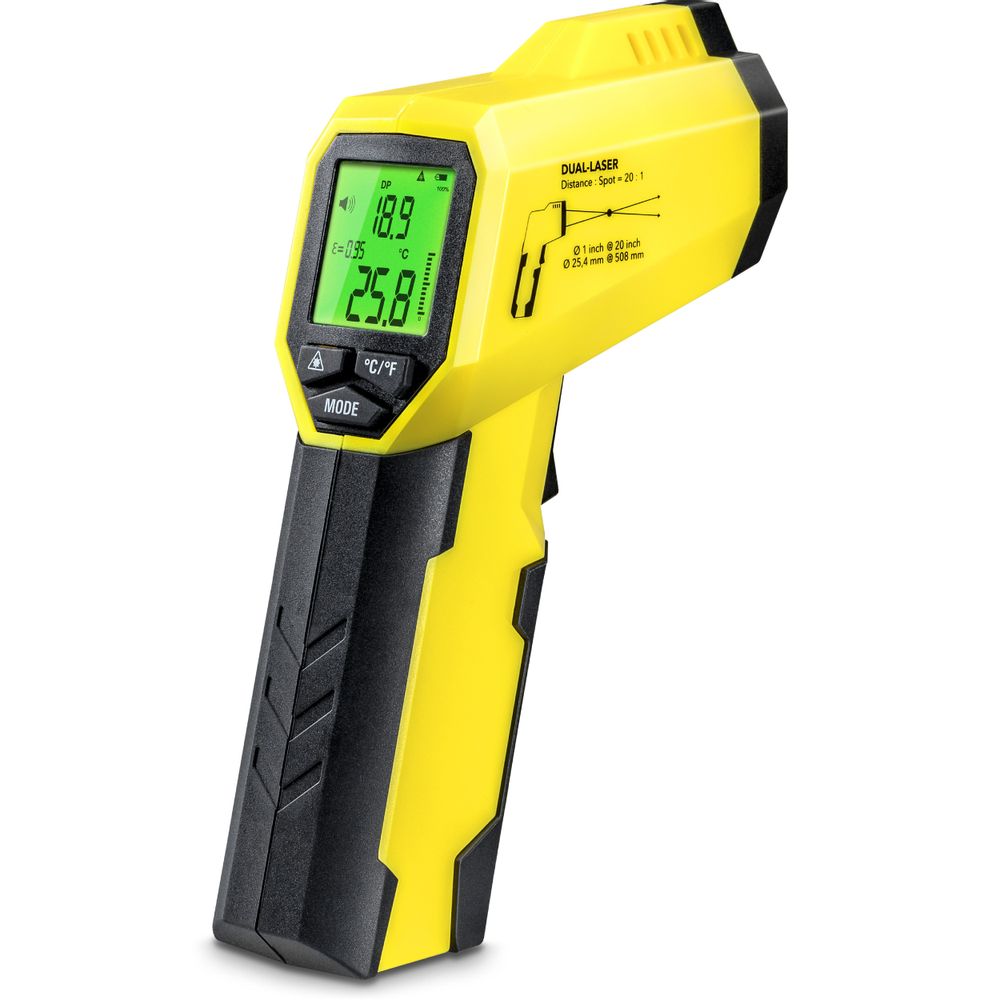

Trotec BP25 Pyrometer-Dew Point Scanner (-50 °C / +260 °C; D:S 20:1)

Optics:

Optical resolution (D:S): 8:01

Smallest measuring spot: Ø 25.4 mm (Distance 508 mm)

Infrared temperature sensor [°C]:

Min. measuring range | Infrared temperature sensor [°C]: -50

Max. measuring range | Infrared temperature sensor [°C]: 260

Max. accuracy [°C] | Infrared temperature sensor:

Accuracy < 20 °C: ± 3.5

Accuracy = 20 °C: 1 % ± 1.5

Accuracy -50 °C to 20 °C (-58 °F to 68 °F): 1 % ± 1.5

Infrared temperature sensor [°F]:

Min. measuring range | Infrared temperature sensor [°F]: -58

Max. measuring range | Infrared temperature sensor [°F]: 500

Integrated temperature probe [°C]:

Min. measuring range | Integrated temperature probe [°C]: 0

Max. measuring range | Integrated temperature probe [°C]: 50

Accuracy ± min. [°C]: 1.5

Accuracy ± Max. (10 °C to 40 °C) [°C]: 1

Integrated temperature probe [°F]:

Min. measuring range | Integrated temperature probe [°F]: 32

Max. measuring range | Integrated temperature probe [°F]: 122

Dew point temperature [°C]:

Min. measuring range | Dew point temperature [°C]: -30

Max. measuring range | Dew point temperature [°C]: 100

Accuracy: ± 2.0 %

Humidity:

Min. measuring range | Humidity [%]: 0

Max. measuring range | Humidity [%]: 100

Accuracy [%] | Humidity: ±3.5 % (20 % RH up to 80 % RH)

Display:

LCD: ✓

Device control:

Push buttons: ✓

Membrane keyboard: -

Type of protection:

IP54: ✓

IP65: -

Temperature sensor:

Response time: < 150 ms

Spectral sensitivity: 8 - 14 µm

Laser (target display):

Class: 2 (II)

Wavelength [nm]: 630 - 670 nm

Power [mW]: 1

Power supply:

Internal (battery): 1 x 9 V battery

Internal (battery): ✓

External (USB): -

Housing design:

Plastics: ✓

Dimensions:

Length (packaging excluded) [mm]: 168

Width (packaging excluded) [mm]: 58

Height (packaging excluded) [mm]: 82

Weight:

(packaging excluded) [kg]: 0.163
