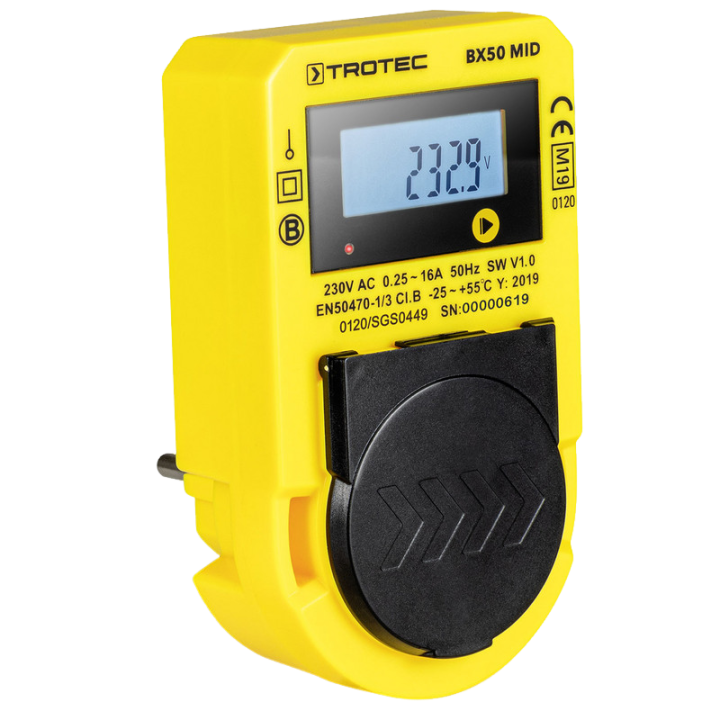

Trotec BX50 MID Energy Consumption Measuring Device (57.5 - 3680 W; 3680 W / 16 A)

Weight (packaging excluded): approx. 155 g

Dimensions (length x width x height): approx. 119 x 68 x 77 mm(with plug)

Display LCD with background illumination

Power supply:  230 V AC.  single-phase.50/60 Hz

Power consumption: 10 VA

Power loss: < 2 W

Measuring range: 0.25 to 5 (16) A

Basic current (lb): 5 A

Starting current: 0.004 lb

Accuracy class: 1 / B

Protection class: II /

Indicator resolution: 0 to 999999.9 kWh;  0 to 999999.9 W

Operating conditions: -25 °C to 55 °C0 % RH to 95 % RH(non-condensing)

Storage conditions: -40 °C to 70 °C.0 % RH to 95 % RH(non-condensing)

Measuring category: CAT II

Pulse frequency (LED): 1000 impulses/kWh

Type of protection: IP54

MID certification: yes

Scope of delivery

• 1 x Energy cost measuring device BX50 MID

• 1 x Quick guide
