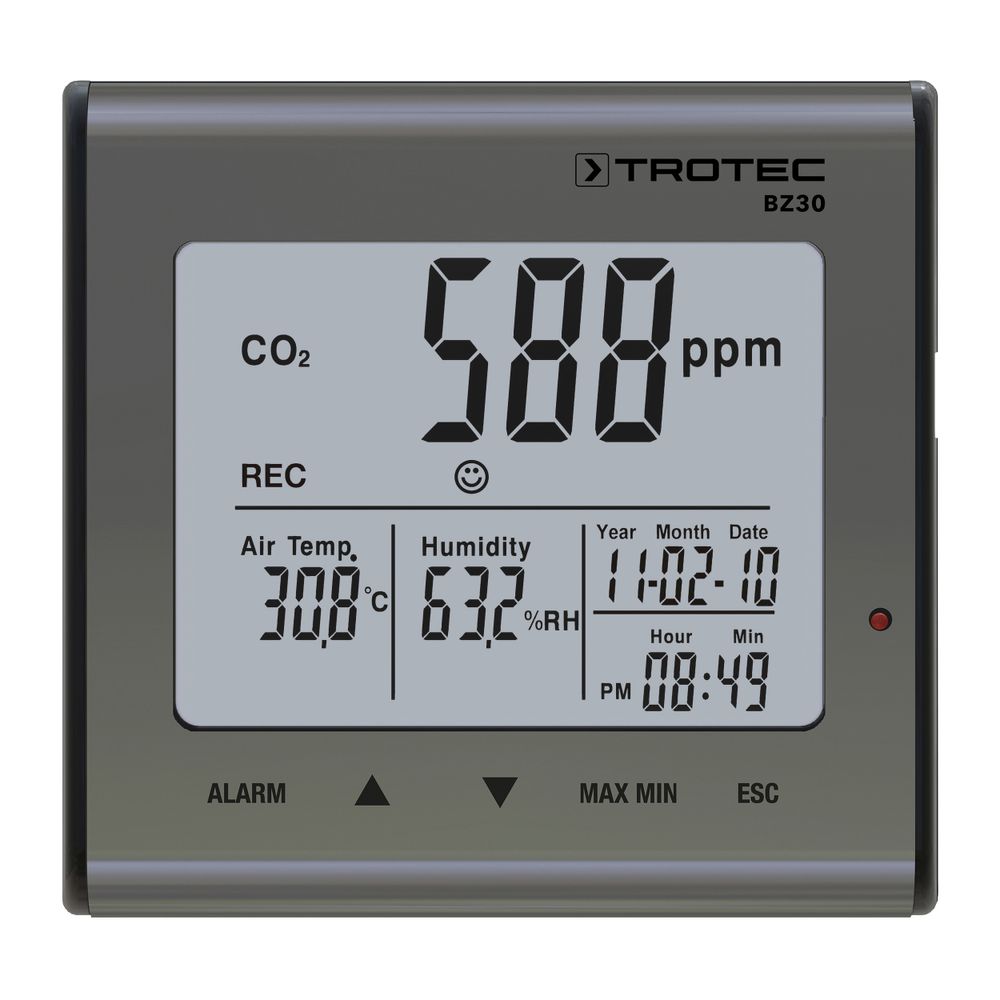

Trotec BZ30 CO2 Air Quality Data Logger (CO2 / °C / % RH)

Weight (packaging excluded): approx. 245 g

Dimensions (length x width x height): 90 mm x 110 mm x 98 mm

Display: LCD (monochrome)

Carbon dioxide (ppm)

Carbon dioxide: sensor NDIR sensor (non-dispersive infrared)

Measuring range: 0 to 9999 ppm

Accuracy: ±5 % or ±75 ppm

Resolution: 1 ppm

Relative humidity

Measuring range: 0.0 % RH to 99.9 % RH

Accuracy: ± 5 % RH

Resolution: 0.1 %

Air temperature

Measuring range: -5 °C to 50 °C or 23 °F to 122 °F

Accuracy: ± 1 °C or ± 1.8 °F

Measuring range resolution: 0.1 °C/ °F

Ambient conditions

Operation: -5 °C to 50 °C or 23 °F to 122 °F and 90 % RH (non-condensing)

Storage: -5 °C to 50 °C or 23 °F to 122 °F and 90 % RH (non-condensing)

Power supply: 1 x 3.7 V Li-ion battery or 230 V power adapter

Memory organisation

Sampling interval: > 1 s

Saving interval: > 1 s

Memory: 50.000 measured values

Scope of delivery

• 1 x Measuring device BZ30

• 1 x 3.7 V Li-ion battery

• 1 x Power adapter

• 1 x USB connection cable

• 1 x CD-ROM with Smartgraph PC software

• 1 x Operating manual
