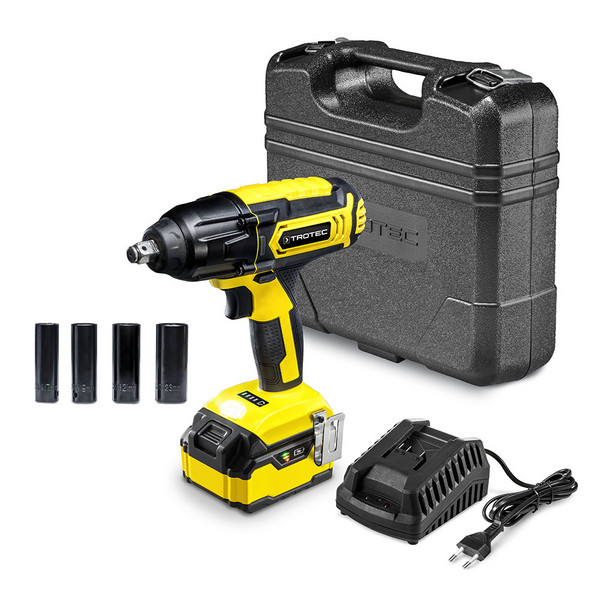

Trotec PIWS 10-20V Cordless Impact Driver (0 - 3000 min-1; 400 Nm)

Technical data:

Idle speed 1. Speed level: 0 - 2.300

Impact frequency combined 1. Speed level: 0 - 3.000 min-1

Number of torque settings: 4

Max. torque [Nm]: 400

Tool holder: External 1/2" square retainer

Maximum drilling diameter:

Max. screw diameter wood [mm]: 23

Max. screw diameter metal [mm]: 23

Radmuttern [mm]: 23

Sound values according to EN 62841-2-2:

Sound pressure level [dB(A)]: 96.74

Sound power level [dB(A)]: 107.74

Uncertainty K [dB(A)]: 3

Vibration information according to EN 62841-2-2:

Vibration emission value (ah) [m/s²]: 12.74

Uncertainty K [m/s2]: 1.5

Electrical values battery:

Battery nominal voltage [V]: 20

Battery capacity [Ah]: 4

Capacity indication: 3-stage

Battery type: Li-ion

Battery charging time [h]: 1.5

Charger:

Mains connection: 230 - 240 V, 50 Hz

Output voltage [V]: 21.5

Power input [W]: 94

Nominal current consumption [mA]: 3500

Connection plug: CEE 7/16

Cable length [m]: 1.5

Protection class: II

Start lock: ✓

Square socket adapter 1/2": ✓

Dimensions:

Length (packaging excluded) [mm]: 215

Width (packaging excluded) [mm]: 70

Height (packaging excluded) [mm]: 250

Weight:

(packaging excluded) [kg]: 2.5
