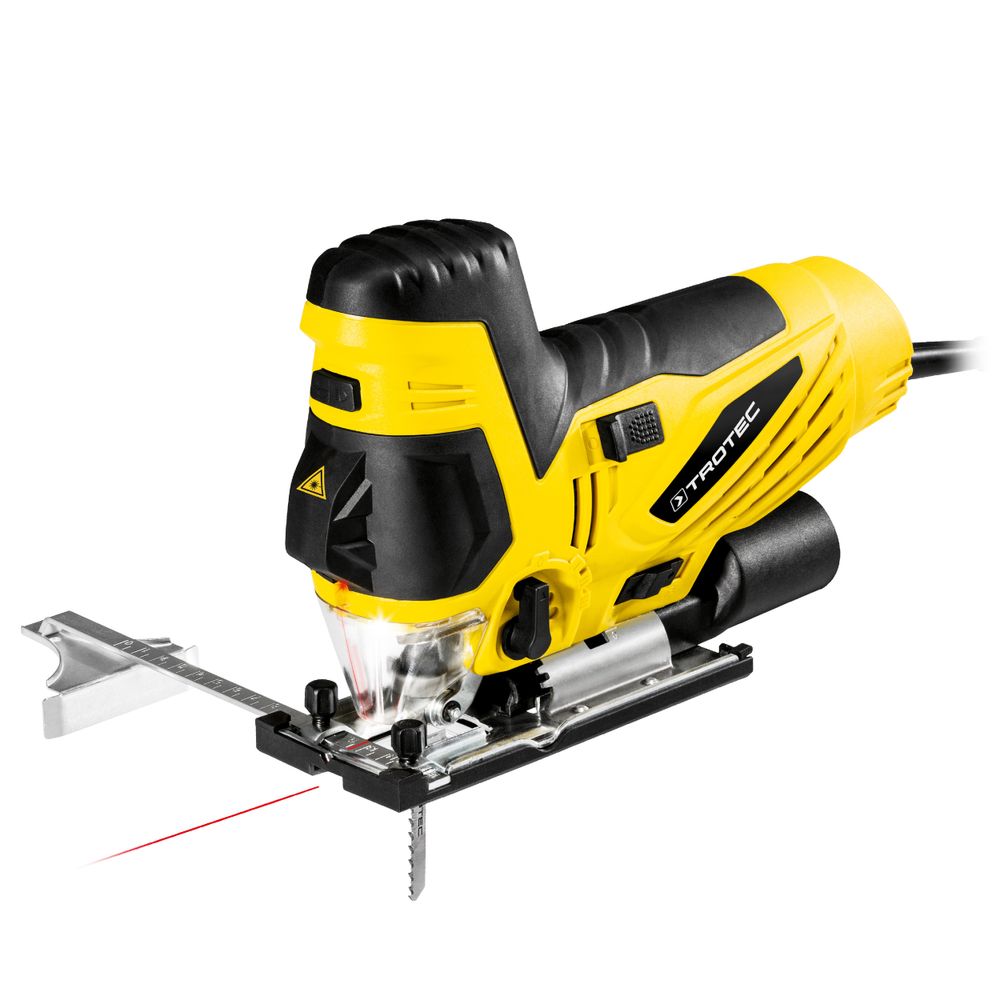

Trotec PJSS 13-230V Jigsaw (3000 min-1)

  • 生産者:Trotec
    Model: PJSS 13-230V
    P/N: 4.425.000.104
    • 要件クオート Request a Quotation
  • 連絡先
    • カートへ追加
    • 要件クオート
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Technical data:

Stroke rate at no load (combined): 0 - 3.000 min-1

Pendulum cutting stages: 1 – 3

Stroke [mm]: 21

Setting wheel stroke rate selection combined: 1 - 6 Stufen

Max. cutting depth (wood) [mm]: 80

Max. cutting depth (aluminium) [mm]: 12

Max. cutting depth (metal) [mm]: 8

Cutting angle: left/right: 0°/15°/30°/45°

Electrical values:

Mains connection: 230 V, 50 Hz

Power input [W]: 850

Electric connection:

Connection plug: CEE 7/17

Cable length [m]: 3

Sound values according to EN 62841:

Sound pressure level [dB(A)]: 88

Sound power level [dB]: 99

Uncertainty K [dB]: 3

Vibration information according to EN 62841:

Vibration emission value jigsaw blade wood (ah) [m/s²]: 9.5

Uncertainty jigsaw blade wood (K) [m/s²]: 1.5

Vibration emission value jigsaw blade metal (ah) [m/s²]: 11.2

Uncertainty jigsaw blade metal (K) [m/s²]: 1.5

Safety feature:

Protection class: II

Dimensions:

Length (packaging excluded) [mm]: 280

Width (packaging excluded) [mm]: 75

Height (packaging excluded) [mm]: 180

Weight:

(packaging excluded) [kg]: 2
