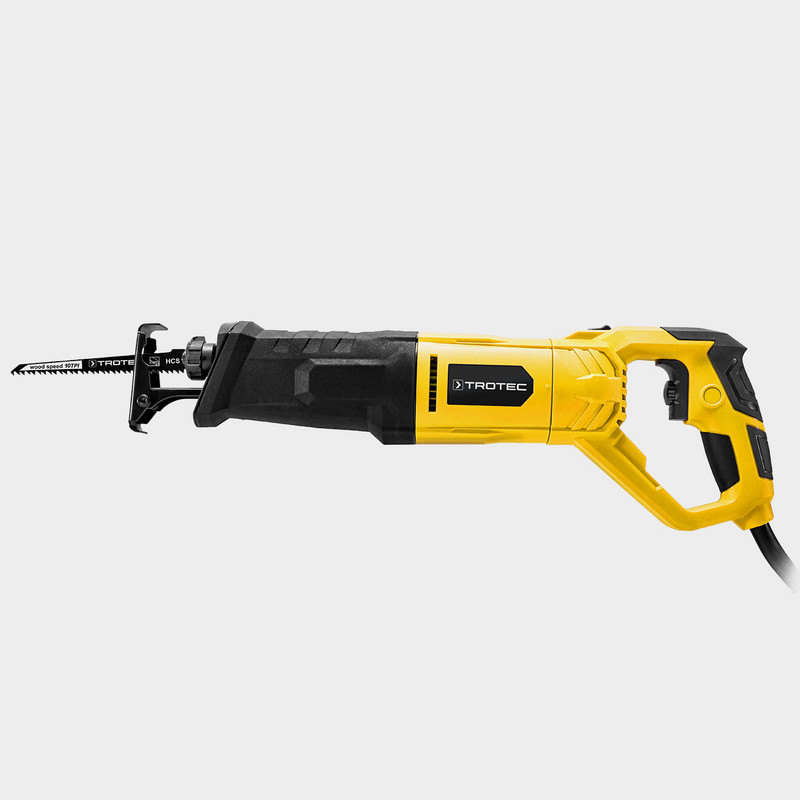

Trotec PRCS 10‑850 Sabre saw (0 - 2800 min-1)

  • 生産者:Trotec
    Model: PRCS 10‑850
    P/N: 4.431.000.010
    • 要件クオート Request a Quotation
  • 連絡先
    • カートへ追加
    • 要件クオート
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Technical data:

Stroke rate at no load (combined): 0 - 2.800 min-1

Stroke [mm]: 28

Max. cutting depth (wood) [mm]: 160

Max. cutting depth (aluminium) [mm]: 12

Max. cutting depth (metal) [mm]: 8

Electrical values:

Mains connection: 230 V, 50 Hz

Power input [W]: 850

Protection class: II

Electric connection:

Connection plug: CEE 7/17

Cable length [m]: 3

Sound values according to EN 62841:

Sound pressure level [dB(A)]: 80.57

Sound power level [dB (A)]: 91.57

Uncertainty (K) [dB]: 3

Vibration information according to EN 62841:

Vibration emission value (ah) Boards [m/s²]: 7.675

Uncertainty (K) Boards [m/s²]: 1.5

Vibration emission value (ah) Wooden beam [m/s²]: 8.06

Uncertainty (K) Wooden beam [m/s²]: 1.5

Dimensions:

Length (packaging excluded) [mm]: 463

Width (packaging excluded) [mm]: 161

Height (packaging excluded) [mm]: 93

Weight:

(packaging excluded) [kg]: 3
