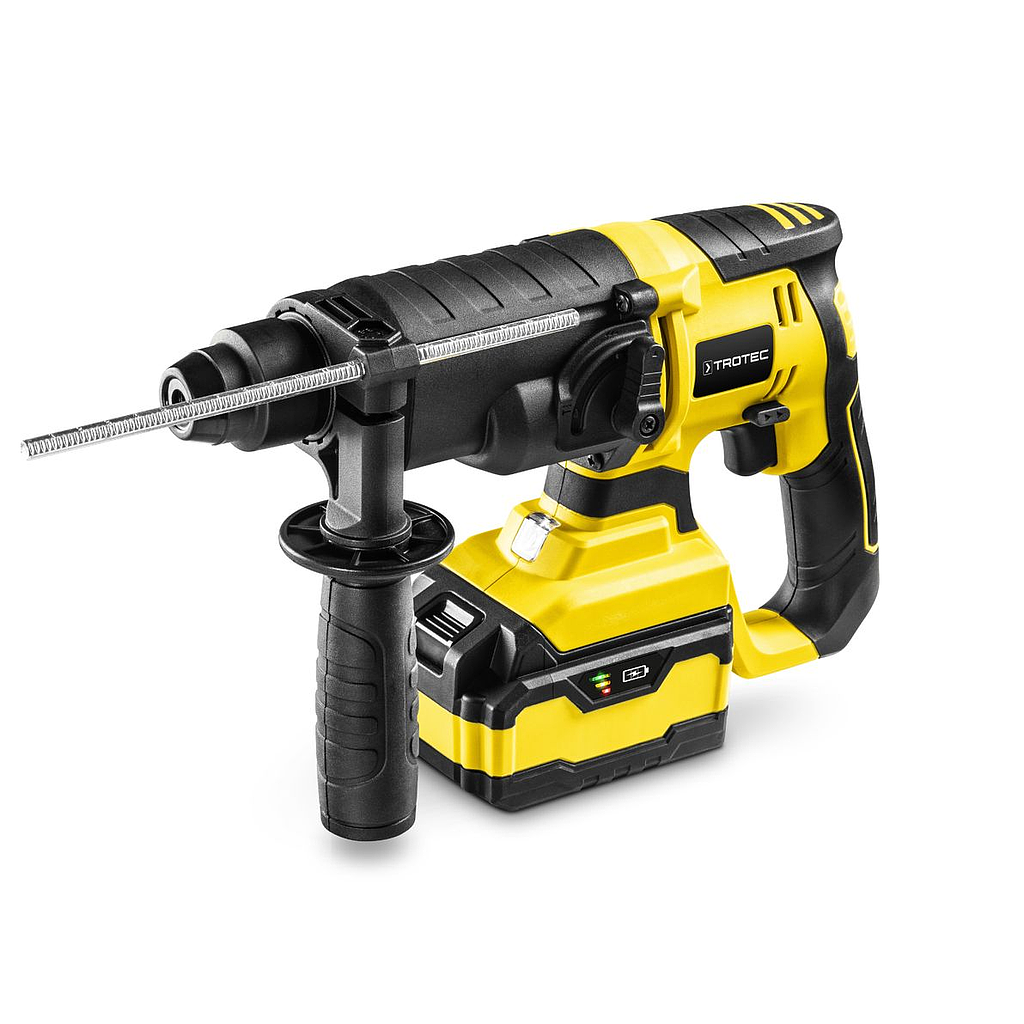

Trotec PRDS 20‑20V Cordless Hammer Drill (0 - 5000 min-1; 2 Joule)

Technical data:

Idle speed 1. Speed level: 0 - 1.000

Impact frequency combined 1. Speed level: 0 - 5.000 min-1

Impact energy [Joule]: 2

Maximum drilling diameter:

Wood [mm]: 26

Metal [mm]: 13

Concrete / brickwork max. [mm]: 20

Electrical values:

Protection class: III

Sound values according to EN 60745:

Sound pressure level [dB(A)]: 82

Sound power level [dB]: 93

Uncertainty K [dB]: 3

Vibration information according to EN 60745:

Vibration emission value (ah) Hammer drilling in concrete (main handle) [m/s²]: 12.453

Uncertainty (K) Hammer drilling in concrete (main handle) [m/s²]: 1.5

Vibration emission value (ah) Hammer drilling in concrete (additional handle) [m/s²]: 10.716

Uncertainty (K) Hammer drilling in concrete (additional handle) [m/s²]: 1.5

Electrical values battery:

Battery nominal voltage [V]: 20

Battery capacity [Ah]: 4

Capacity indication: 3-stage

Battery type: Li-ion

Battery charging time [h]: 1.5

Charger:

Mains connection: 230 - 240 V, 50 Hz

Output voltage [V]: 21.5

Power input [W]: 94

Nominal current consumption [mA]: 3500

Connection plug: CEE 7/16

Cable length [m]: 1.5

Protection class: II

Dimensions:

Length (packaging excluded) [mm]: 305

Width (packaging excluded) [mm]: 110

Height (packaging excluded) [mm]: 195

Weight:

(packaging excluded) [kg]: 3
