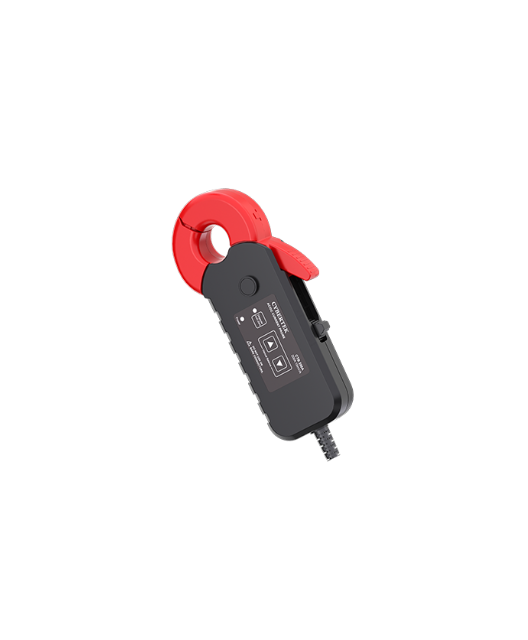

Cybertek CTB200A 고정확도 전류 프로브 (200A/600kHz, CTB104/A)
생산업체: Cybertek Model: CTB200A - 연락처
Rated current: AC/DC 200A
Bandwidth: 600kHz
Current transfer ratio: 10mV/A
Operating temperature and humidity range: -40℃~85℃, Below 80%RH (No dew)
Promised accuracy range: 0℃~40℃, Below 80%RH
Temperature drift coefficient: 40℃~0℃﹑40℃~85℃
Amplitude Sensitivity: Below±0.02% rdg./℃
Offset Voltage:≤±0.01% f.s./℃
Diameter of measurable conductor: Φ Below 20 mm
Conductor position effect: Below ±0.1% rdg.(Input 100A, DC-100Hz, outer diameter 5mm)
Power supply voltage: Need to use with CTB104/A
Power supply capacity: Below ±250mA (200A/45Hz measurement, power supply ±12V)
