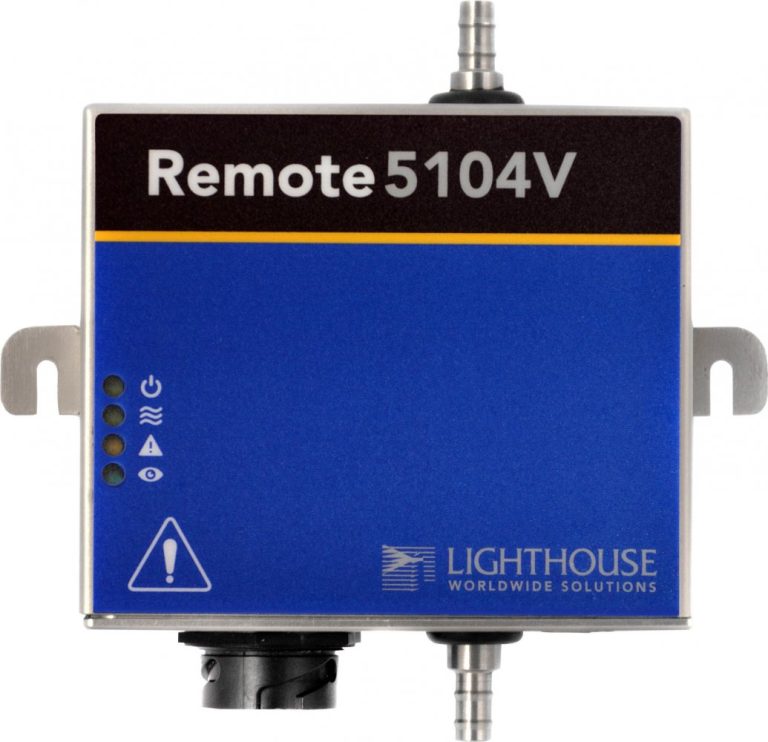

Lighthouse Remote 5104V 공중 입자 계수기 (0.5 - 25.0 µm, 1.0 CFM)

Size Range: 0.5 - 25.0 µm

Standard 2 Channels: 0.5, 5.0µm; (0.5, 1.0, 5.0, 25.0µm)

Flow Rate: 1.0 CFM (28.3 LPM)

Laser Source: Laser Diode

Zero Count Level: <1 Count / 5 minutes (meets specifications of JIS B9921 and reporting requirements of ISO21501-4 Annex C)

Concentration Limits: 1,000,000 Particles/ft^3@10% Coincidence loss suitable for ISO classes 1-8 cleanrooms

Data Storage: 2,300

Calibration: ISO 21501-4 Compliant and Accredited ISO 17025

External Vacuum Requirements: 18" (45.72 cm) of Hg

Air Flow: Internally monitored

Communication Modes: Serial - 485 Modbus RJ45

LED Indicators: Power, flow service, sampling

Connector: Industrial RJ-45

Enclosure: 316L Stainless steel, wash down resistant, splash tight

Power: 24VDC

Dimensions: 5.42” (l) x 2.14” (w) x 3.58” (h), [13.76 cm (l) x 5.43 cm (w) x 9.09 cm (h)]

Weight: 15.06 oz(0.44 kg)

Software: LMS Express, LMS Pharma, LMS Pro and LMS Xchange

Includes: 24 VDC power adapter and power cord, Calibration Certificate

Optional: Temperature & humidity probe, 1 CFM isokinetic sample probe, Beveline tubing, printed operators manual, Purge Filter
