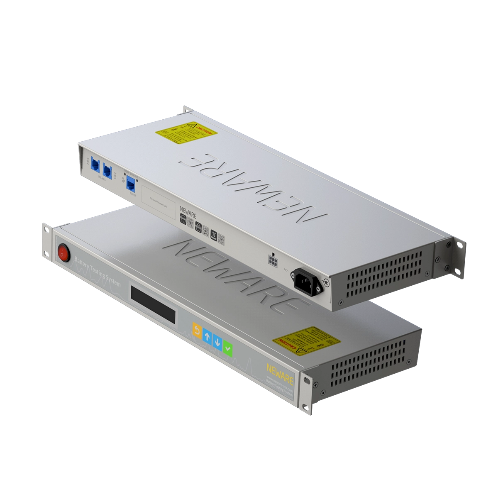

NEWARE CT-ZWJ-4'S-T-1U Control Unit (15W)

Enter the power supply: AC 220V ±10% / 50Hz

Interiorinput power: 15W

Data cache: 1GB

frequency of sampling: Max. 100Hz (10ms)

The clock error: 1S /Day

CPU: ARM9

System kernel: Linux core

Screen: LCD

Communication interface: RJ45

Communication mode: TCP/IP

Communication rate: 100M

IP levels of protection: The protection level is IP20

Maximum number of band channels: 256

Operating temperature range: 0℃~40℃

Storage temperature range: -10℃~50℃

Relative humidity range of the working environment: 70% RH (no moisture condensation)

Storage environment relative humidity range: 80% RH (no moisture condensation)

Case size per unit (W * D * H) (mm): 1U （19"） 482*170*50
