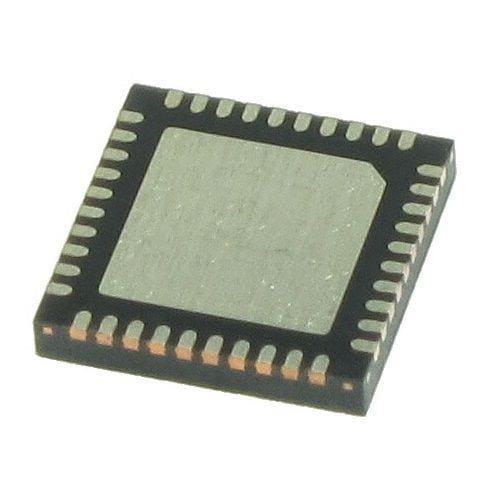

Bluetooth BG24, 2.4 GHz, 1024kB Flash, 128kB RAM, +10 dBm, +125C, QFN40 Silicon Labs EFR32BG24A010F1024IM40-B
Hãng sản xuất: Silicon Labs Model: EFR32BG24A010F1024IM40-B - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Core: ARM Cortex M33
Technology: Si
Sensitivity: - 94.8 dBm
Output Power: 10 dBm
Data RAM Size: 128 kB
Data RAM Type: RAM
ADC Resolution: 12 bit
Data Bus Width: 32 bit
Interface Type: I2C
Mounting Style: SMD/SMT
Maximum Data Rate: 2 Mbps
Moisture Sensitive: Yes
Operating Frequency: 2.4 GHz
Program Memory Size: 1 MB
Program Memory Type: Flash
Supply Voltage - Max: 3.8 V
Supply Voltage - Min: 1.71 V
Maximum Clock Frequency: 78 MHz
Supply Current Receiving: 4.4 mA
Supply Current Transmitting: 19.1 mA
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
