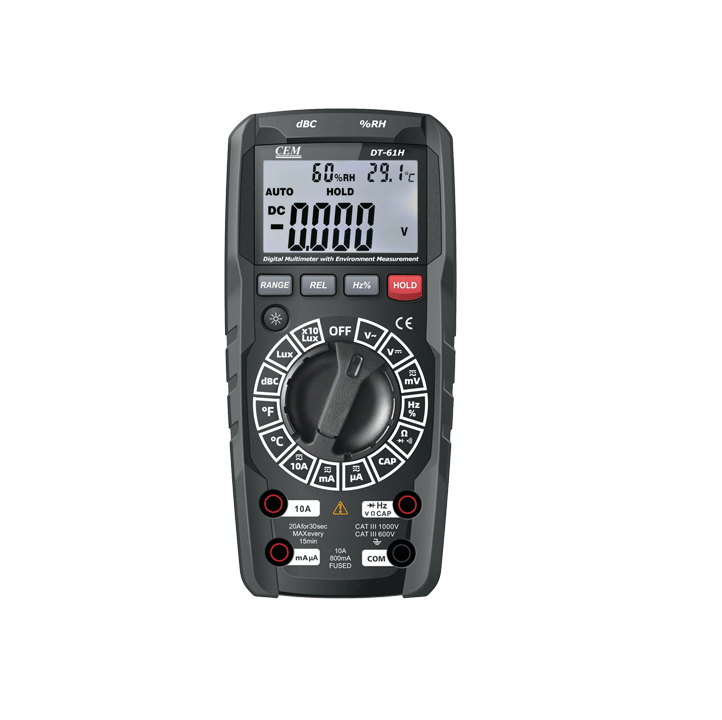

CEM DT-61H 6合1数显万用表,具有环境测试功能 (600V,10A,-20~750℃)
制造商: CEM Model: DT-61H 来源: China 保障: 12 Month - 报价要求
- 报价要求
- 联系
Function - Max. Range - Max.Resolution - Basic Accuracy
Light
20,000Lux ; 0.1Lux ; 0.5%±10d
40,000Lux ; 0.1Lux ; 0.5%±10d
Sound: 100dB ; 0.1dB ; ±3.5dB
Humidity: 99%RH ; 0.1%RH ; ±3.5%RH
Temperature
﹣20 ~750℃ ; 0.1°up to 400°,1°over 400° ; ±3%±3℃
﹣40 ~1400℉ ; 0.1°up to 400°,1°over 400° ; ±3%±5℉
IR Temperature: ﹣20 ~750℃/﹣40 ~1400℉ ; 0.1º up to 400º,1º over 400º ; ±1%±1ºC/1.8℉
NCV: 50~1000V
Voltage DC: 600V ; 0.1mV ; ±0.5%±2d
Voltage AC: 600V ; 0.1mV ; ±1.2%±10d
Current DC: 10A ; 0.1uA ; ±1.0%±2d
Current AC: 10A ; 0.1uA ; ±1.0%±2d
Resistance: 40MΩ ; 0.1Ω ; ±0.8%±2d
Capacitance: 100uF ; 0.01nF ; ±3.5%
Frequency: 10MHz ; 0.001Hz ; ±1.5%
Duty Cycle: 99.9% ; 0.1% ; ±1.2%
Diode Check: Open voltage 2.8VDC; Test current 1mA
Continuity Test Threshold 30Ω
Accessories
9V battery, Test leads and K-Type temperature probe. Infrared Temperature Probe (Option IR-82)
Datasheet
Features
• The Sound Level function can be used to measure noise in factories, schools, offices and home, etc, checking acoustics of studios, auditoriums and hi-fi installations.
• The Light function is used to measure illuminance in the field. It is fully cosine corrected for the angular incidence of light. The sensitive component of light used in the meter is a very stable, long life silicon ciode.The Humidity/Temperature uses a humidity/semiconductor sensor and K type thermo couple.
• The DMM function include ACV, DCV, ACA, DCA Resistance, Capacitance, Frequency, Duty Cycle, Diode, Continuity test and Non-contact AC voltage detector.
• Backlight for LCD, knob Switch
• Built-in InfraRed Thermometer
