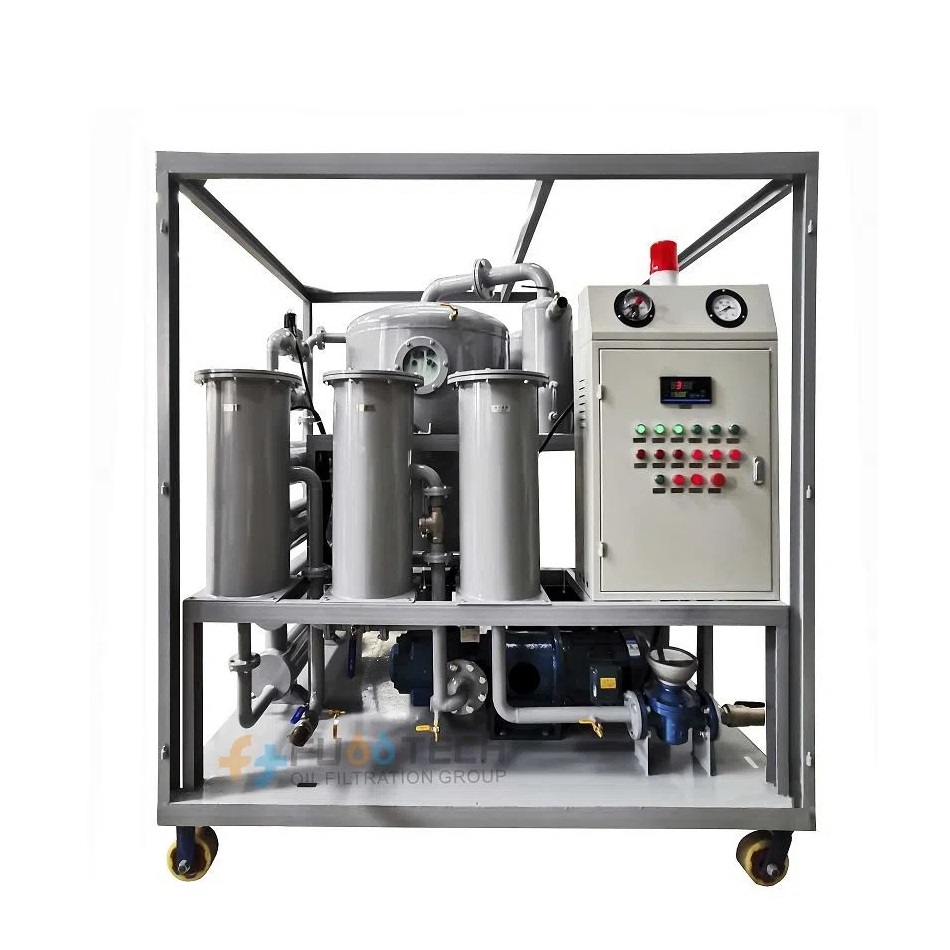

Fuootech ZYD-100 双级真空变压器滤油机 (6000 L/H)

Flow Rate: 6000 L/H

Working Vacuum Degree: -0.08 ～ -0.099 MPa

Working Discharge Pressure: ≤ 0.3 MPa

Temperature Control Range: 20 ～ 80 ℃

Operation Temperature: 40 ~ 70 (65℃ is best) ℃

Power Supply: 380V, 50Hz, 3 phases (or as per your requirements)

Working hours without Trouble: 4000 Hour

Continuous Working Hours: 150 Hour

Ambient Temperature: -25 ～ 55℃

Working Noise dB（A） 65 ~ 90

Heating Power (adjustedavailable): 48 KW

Total Power: 52.5 KW

Inlet/Outlet: φ42 mm

Weight: 1050 Kg

Dimension (LxWxH): 1750x1350x2150 mm

Oil Results after Filtered by ZYD Series

Moisture (Water Content): ≤ 3 ~ 5 PPM

Gas Content: ≤0.1% (Vol)

Impurities Degree (Filtration precision): ≤ 1 micron (no free carbon)

Breakdown Voltage (Dielectric): ≥68 ~ 80 KV

Flash Point: ≥135℃

Cleanliness: ≤NAS 1638 Grade 6
