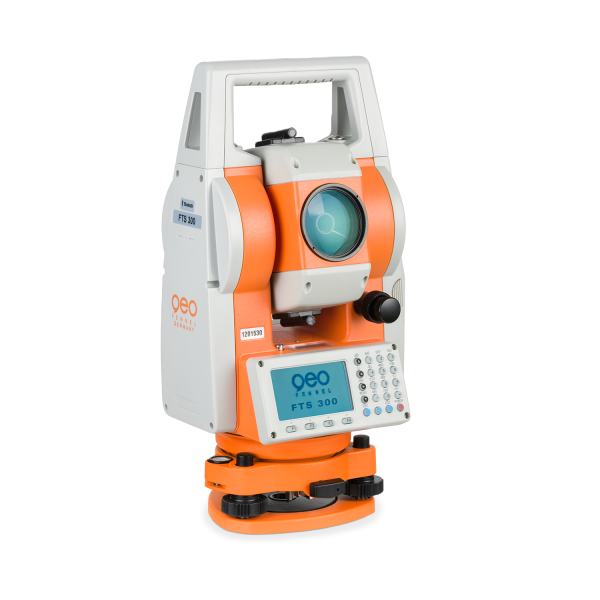

GEO-Fennel FTS 300 Total station

Laser class: 2

Dust / water protection: IP 56

Extended size: 190 x 210 x 350 mm

Temperature range: -20°C to 55°C

Operating time: 2 x 6 h

Visible laser beam: ± 1.5 mm / 1.5 m

Accuracy: +/- 2mm + 2ppm (working range), 2" (angle measurement)

Working range: 1.5 - 600 m (Reflective tape target), 1.5 - 600 m (Reflectorless), 1.5 - 5000 m (Single standard prism)

Resolving Power: 3"

Field of View: 1°30'

Power supply: NiMH

Plate level: 30" / 2 mm

Range: ± 3°

Axis: 2

Angle units: 100 % / 360° / 400 gon

Minimum reading resolution: 1'' / 5''

Image: Erect

Shortest focussing distance: 1.5 m

Telescope magnification: 30 x

Objective diameter: 45 mm

Circular bubble: 8' / 2 mm

Weight: 6.5 kg
