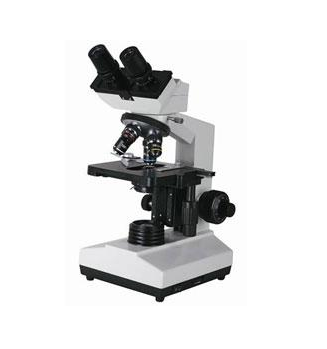

HINOTEK DN-107T 数字显微镜

Viewing Head:

- Sliding Binocular Head, Inclined at 45°, Interpupilary 55-75mm

- Camera System: Valid Pixel: 1280×1024（1.3M Pixel）

Output Mode: USB2.0

Opration System: WINDOWS 2000/XP/VISTA

Software: ScopeImaage 9.0

Range of Viewing Field: >75%

Eyepiece: WF10×/ 18

Nosepiece: Toward Quadruple Nosepiece

Objective: Achromatic Objective 4×、10×、40×、100×

Stage: Double Layers Mechanical Stage 140×140mm/75×50mm

Condenser: Abbe NA1.20 with Iris Diaphragm & Fliter

Focusing: Coaxial Coarse & Fine Adjustment System, Range 28mm, Fine Division 0.002mm

Illumination: Halogen Lamp 6V/20W，Brightness Adjustable
