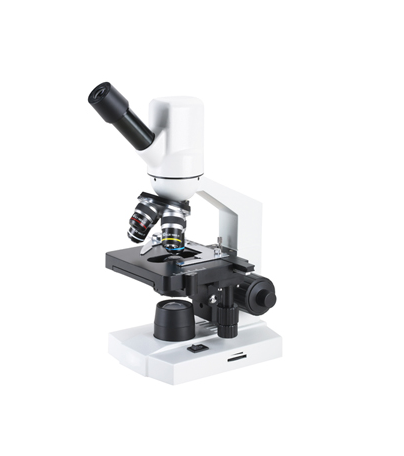

HINOTEK DN-10A 数字显微镜

Viewing Head:

- Microscope: Monocular head, Inclined at 45°, 360°rotatable

- Camera System: Valid Pixel: 1280×1024(1.3M Pixel)

Output Mode: USB2.0

Operation System: WINDOWS 2000/XP/VISTA 32 Bit or 64 Bit

Software: Scopelmage 9.0; Scopelmage Advanced

Rang of Viewing Field: > 75%

Objective: Achromatic Objective (DIN) 4×、10×、40×、100×

Eyepiece: WF10×/ 18

Stage: Double Layers Mechanical Stage 115×125mm/70×20mm

Condenser: Abbe NA1.25 Condenser with iris diaphragm (Φ2-Φ28mm)and frosted filter

Focusing: Coaxial coarse and fine adjustment

Illumination: 1W Powerful LED Illumination, brightness adjustable
