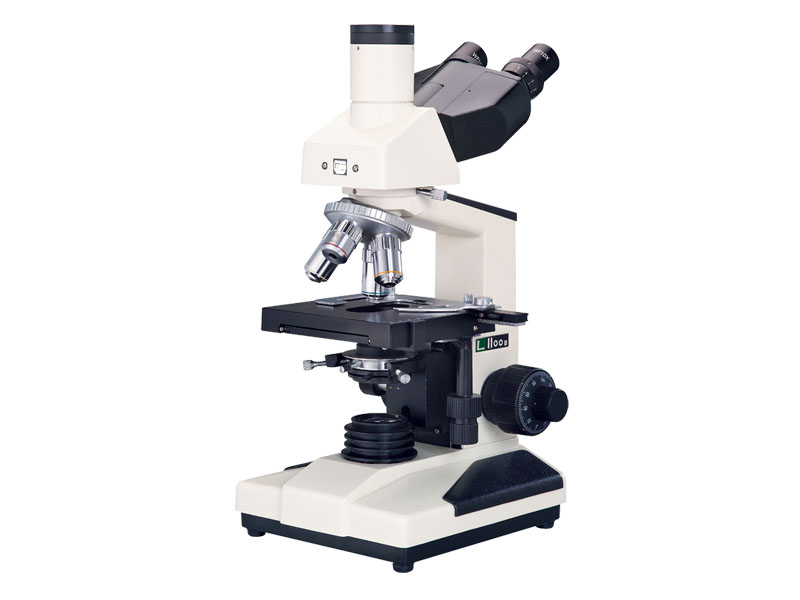

HINOTEK MC-1180 数字显微镜

Eyepiece: WF10X(Φ18mm)

Objective: Achromatic 4X/0.10; Achromatic 10X/0.25; Achromatic 40X/0.65(Spring); Achromatic 100X/1.25(Spring, oil)

Digital trinocular: Built-in clear color 1/2”CMOS sensor , the dynamic resolution is 1280X1024(UXGA) , USB2.0; System requirement：Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux

Focus system: Coaxial coarse/fine focus system. Minimum division of fine focusing: 2μm

Nosepiece: Quadruple(Frontward ball bearing inner locating)

Stage: Double layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm)

Abbe condenser: N.A.1.25 Rack & pinion adjustable

Filter: Blue filter; Frosted filter

Collector: For halogen lamp

Light source: 6V 20W Halogen lamp with brightness control
